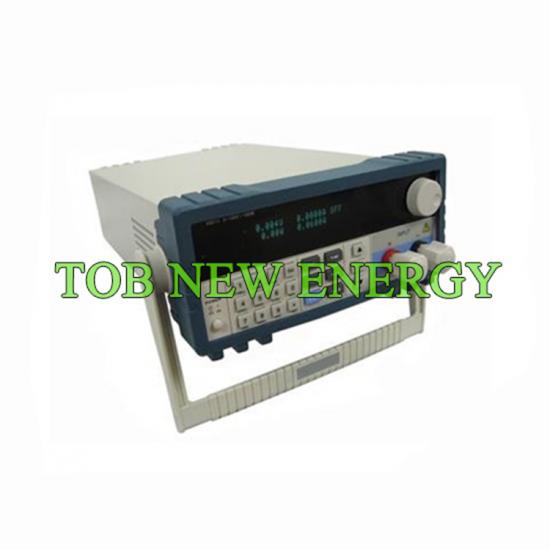

TOB TOB-IT8512 DC Programmable Electronic Load (120V/30A/300W)

Input Rating

Power: 300W

Current: 0-30A

Voltage: 0-120V

CC Mode

Range: 0-3A0-30A

Resolution: 0.1mA1mA

Accuracy: 0.05%+0.1%FS0.1%+0.1%FS

CV Mode

Range: 0.1-18V0.1-120V

Resolution: 1mV10mV

Accuracy: 0.05%+0.02%FS0.05%+0.025%FS

CR Mode

Range: 0.1-99Ω100-4KΩ

Resolution: 0.01Ω1Ω

Accuracy: 1%+0.3%FS1%+0.8%FS

CW Mode

Range: 0-100W100-300W

Resolution: 1mW10mW

Accuracy: 1%+0.1%FS1%+0.1%FS

Voltage Measurement

Voltage: 0-18V0-120V

Resolution: 1mV10mV

Accuracy: 0.02% + 0.02%FS0.02% + 0.025%FS

Current Measurement

Current: 0-3A0-30A

Resolution: 0.1mA1mA

Accuracy: 0.1% + 0.1%FS0.2% + 0.15%FS

Battery Test: Battery Input:0.1-120V; Max.Measurement:Capacity=999AH

Dynamic Test: Transition List:0-1kHZ

Short Circuit

Current(CC): =3A=30A

Voltage(CV): 0V

Resistance(CR): =40mOh

Temperature

Operating: 0~40oC

Nonoperating: -10oC~70oC

DimensionW*H*D(mm): 214*88*354mm

Weight Kg: 3.5
