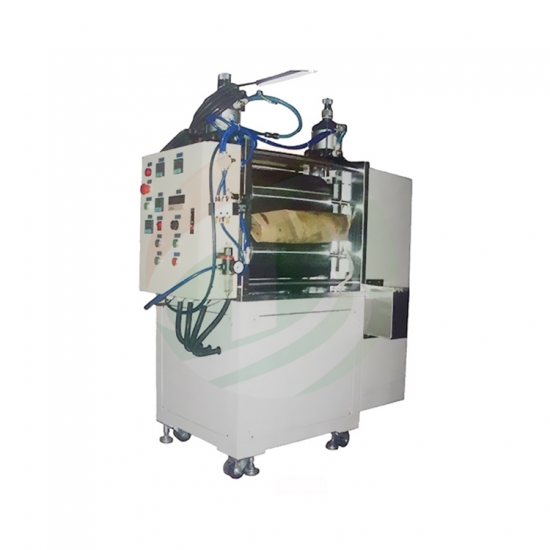

TOB TOB-HC-HRP Heat Roller Press Machine For Battery Electrode Material (φ200x400)

Power

Three-phase AC380V, 50HZ;

Button light and electromagnetic valves AC 220V;

Motors 380V;

Switchboard power of about 10KW;

Size: 900 (L) * 1110 (W) * 1350 (H)

Basic configuration:

1. Imported Gear Motor

2.AirTAC cylinder and solenoid valve.

3.Composite roll: φ200x400

4.Imports of non-contact temperature sensing

5.Iimport temperature Controller.

Features:

1.Compound main roller surface roughness :0.2

2.Compound main roller concentricity: ± 0.007mm.

3.Compound main roller cylindricality: ± 0.007mm.

4.Compound main roller materials :GCr15,Quenching hardness HRC50,Hard chrome plated; Coating thickness 0.1mm; surface hardness of about HRC60.
