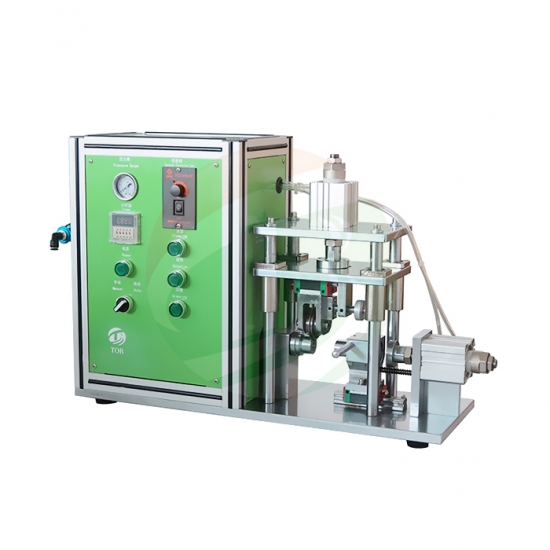

TOB TOB-GC650 Grooving Machine For Cylinder Cell

Source voltage: 110V-220V AC, 50/60Hz Single Phase

Power: 140W

Suitable battery model: 18650 / 26650 / 32650, can be customized

Advantages

1. Customized die for other cylindrical cell types is available according to request

2. Each type of cylinder cell can only be grooved specifically by certain model of this equipment. Please select the type of cylinder cellfor the corresponding grooving die of each cylinder cell type.

Grooving depth: 1.2-2.0mm adjustable

Grooving width: 1.1-1.5mm

Grooving precision: ±0.1mm

Knife life: >100 0000 times

Air supply : 0.5-0.7MPa

Dimension: 600*450*350mm

Weight: 68kg

Datasheet
