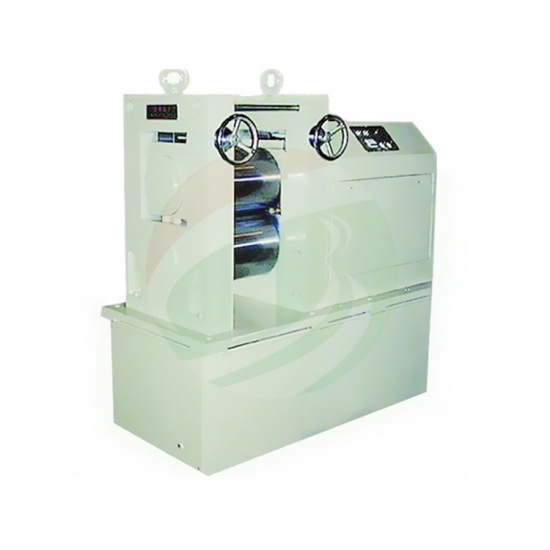

TOB TOB-DYG-703A-400 Pressure Controllable Battery Roll Press Machine

Type: Vertical 2 Roll Press type

Source voltage: AC110V/220V 50/60HZ

Power: 7.5KW

Roller diameter: Dia * width = 400*400mm

Speed: 8r.p.m

Pressure: 100T, about 980KN

Rolling press mode: Preloading suppression way; Preload pressure by a manual handle

Roller drive way: Gear to gear transmission, planetary gear reducer gear motor drive

Max rolling gap adjustment: 0-2mm adjustable

Structure

1, Roll surface roughness, surface roughness of 0.4um

2, Roll hardness: HRC62-65, roll conditioning: HB280-300, 18mm or higher quenching depth and roll cylindricity less than 0.003 mm

3, Adopt p52 precision bearings

4, Roll gap adjusting : automatic locking device, 0-2 mm is adjustable

Dimension(L*W*H): 1819 * 1000 * 1817mm

Weight: About 4T
