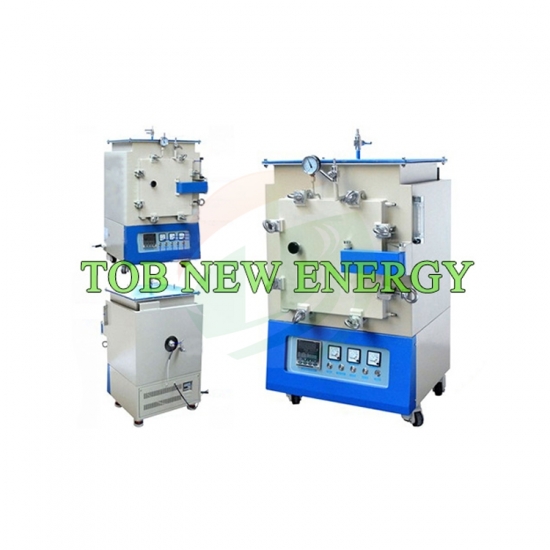

TOB TOB-DSP-GF1100-VII Atmosphere Chamber Furnace (1100℃,32KW,380V)

Power: 32KW

Furnace tube size(mm): 800*600*600

Dimension: 1110*1050*1400

Power supply voltage: 380V

Phase number: Three phase

Temperature control mode

I. Yudian temperature control: 30 sections can only use PID temperature regulation.

II. FP93 temperature control (from Japan)

Control accuracy: +/- 1 ℃

Triggers: Phase-shift trigger

SCR: 106 / 16E Germany Semikron

Max temperature: 1100℃

Rated temperature: 1000 ℃

Heating rate: ≤20 ℃ / Min (available upon request modification)

Recommended heating rate: ≤15 ℃ / Min

Thermocouple Type: Type K

Certification: CE

Surrounding surface temperature: ≤45℃
