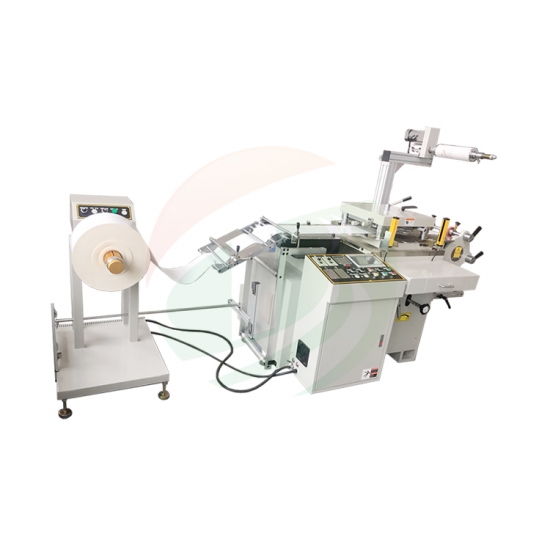

TOB TOB-DMQ-350 Laboratory Automatic Electrode Die Cutter Machine (340*280mm)

Maximum feed width: 350mm

Maximum processing area: Automatic punching 340*280mm (manual punching 350*350mm）

Equipment running speed: 1000-9000 times/h

Die thickness requirements: thickness > 8mm

Feed control: Feeding speed and step adjustment

Shipping distance accuracy: ±0.1mm

Safety equipment: Infrared grating protection and safety shield

Feed step accuracy: ＜0.1mm

Operation interface: Intelligent human machine interface

Roll material weight: ＜50kg

Roll material outer diameter: ＜400mm

Punching knife life: 1-5 million times (depending on the quality of the die and the accuracy of the machine）

Burr degrees: ＜0.02

Feed roll diameter: 3 inches (inside diameter)

Waste recycling: Automatic waste separation and recovery device

Operating mode: Auto/manual mode

Control System: Intelligent microcomputer control

Total power: 3.6KW

Power voltage: AC220V

Machine weight: 1500kg
