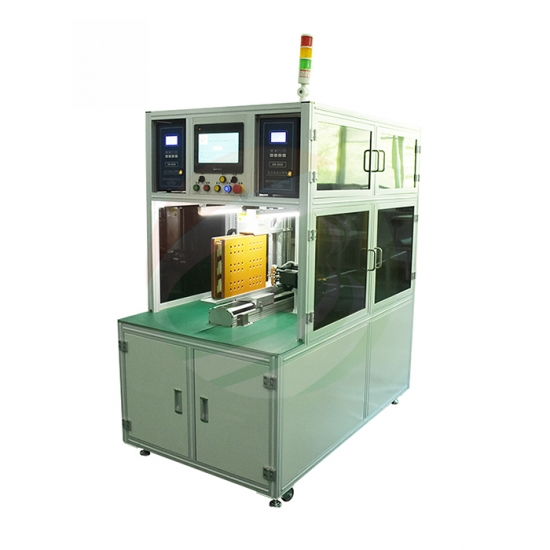

TOB TOB-DH20000 Automatic 18650 Battery Pack Welding Machine Double Side Welding (35kva)

Y-axis travel: 500mm

Z-axis travel: 300mm

Spot welding speed: 0.5s / point; 3200pcs / h

Maximum speed of motor drive: 1000mm/s

The maximum number of batteries loaded: 200pcs (standard 18650 lithium battery)

Number of groups for storing files: 99 groups

Operating system: Embedded system + man-machine screen

Transmission: Stepper + imported precision linear guide (optional servo + screw)

Power supply: Single-phase 220V ± 10% / 50Hz ± 10%

Air supply: 0.3 ~ 0.4Mpa

Weight: 400KG

Dimensions: 900mm*1300mm*1800mm

Welding machine parameter

Power supply : AC220V±10% 50Hz

Max output current : 8000A

Max power : 35kva

Welding current checking

Dimension : 185(W)*270(H)*425(D)mm
