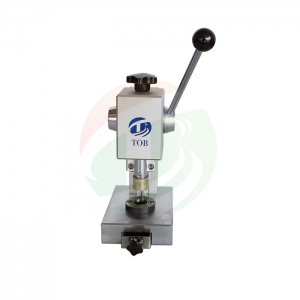

TOB TOB-CP60 Manual Coin Cell Electrode Disc Cutting Machine (8mm-24mm)

Operating: Manual

Punching size: Standard configuration : φ14mm punching die, φ8-24mm can be chosen

Application Notes

For make CR2016, CR2025 or/and CR2032 coin cell batteries,

we will need at least three cutting dies:

A 15mm

B 16mm

C 19 mm (for separator to fully separate the electrodes)

For CR2450 coin cell:

20mm cutting die can be used for cutting electrode discs and the

23mm cutting die for separator disc.

Punching stroke: 25mm

Punching thickness: 0.005-0.5mm electrode and separator

Advantages

Simple operation

Light weight

Can both cut electrode and separator

Dimension: 110 * 150 * 235mm

Weight: About 6kg
