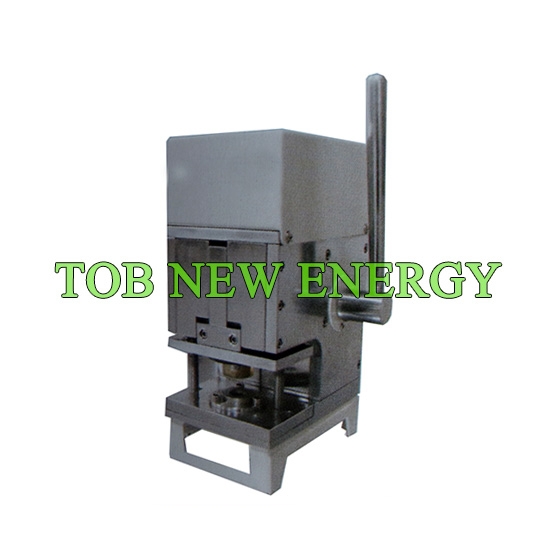

TOB TOB-CP-S2 Coin Cell Electrode And Separator Punching Machine (8-24mm)

Operating: Manual

Punching size: Standard configuration : φ14mm punching die, φ8-24mm can be chosen

Application Notes

For make CR2016, CR2025 or/and CR2032 coin cell batteries,

we will need at least three cutting dies:

A 15mm (for negative side case, which is 16.5mm in diameter)

B 19mm (for positive side case, which is 20mm in diameter)

C 20 mm (for separator to fully separate the electrodes)

For CR2450 coin cell:

20mm cutting die can be used for cutting electrode discs and the

24mm cutting die for either electrode or separator disc.

Die materials: Hight quality die steel with HRC60 Hardness

Punching stroke: 25mm

Punching thickness: 0.005-0.5mm electrode and separator

Advantages

Simple operation

Light weight

Can both cut electrode and separator

Dimension: 166 * 196 * 233mm

Weight: About 15kg
