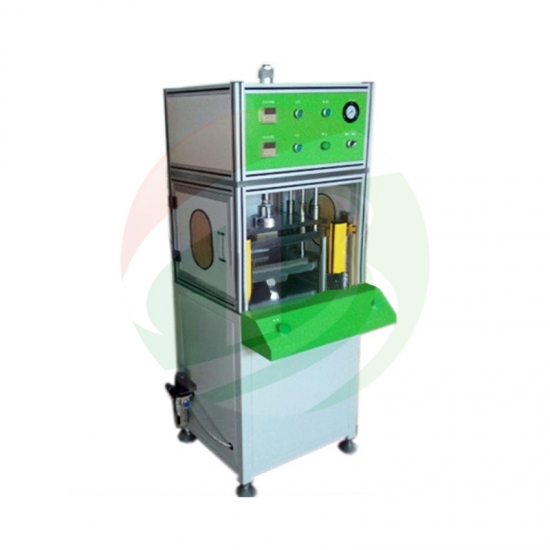

TOB TOB-CK150 Aluminum Film Forming Machine For Pouch Cell Case (0.1-0.2mm)

Working Voltage: 110 - 240V AC, single phase 50/60HZ

Power : 100 W:

Punching aluminum-laminated film thickness: 0.1-0.2mm

Max Die size(L*W*D): 200*200*6mm, Customized according to needs

Air Pressure Requirement: 0.5 - 0.7 MPa (Air Compressor is not included)

Max. Cup Depth to Punch: < 6.0 mm

Max. Punching Pressure: 5 metric tons

Stroke Frequency: < 8 seconds per trial

Product Dimensions: 700mm(L) x 640mm(W) x 1650mm(H)

Net Weight: 220 kg

Shipping Dimensions(L*W*H): 69" x 31" x 19", 176*80*74cm

Datasheet

Advantages

1. Structure of guide pin, slide up/down smoothly with high precision

2. Change mould, adjust tensile depth simply, quickly

3. Use screen and casing protection, guarantee safety

4. High strength of chrome steel and aluminum alloy, surface roasts the paint processing through environmental protection electroplating

5. With manual and auto two kinds operating mode, Customer can choose freely according to their needs.
