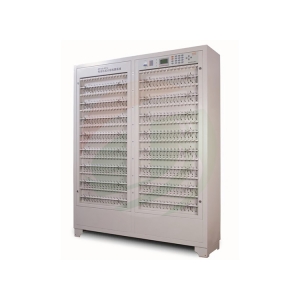

TOB TOB-CG-8512W-5V2A-S1 Cylindrical Battery Formation Charge And Discharge Machine (512 Channels)

Input Power: AC 220V ±10% / 50Hz

Whole power range: 8300W

Voltage

Test Range: 0.8V~4.3V

Accuracy: ±（0.2% of reading + 0.2% of range）

Current

Output range: ±2000mA

Accuracy: ±（0.2% of reading + 0.2% of range）

Constant voltage cutoff current: Min 15mA

Time

Inspection time: Real time<2S

Timing range: 0~9999 min/step

Data Logging Interval: ≥20S

Sorting condition: Termination capacity (time)

Central controller version: 6 series

Charge

Charge Mode: Constant Current Charge、Ni-MH battery charge,lithium ion battery charge

End Condition: Voltage、cutoff current、 Time、Voltage variation

Discharge

Discharge Mode: CCD

End Condition: Voltage、Time

Cycle

Loop Measure Range: 1~9999 times

Single cycle step: 254

Nested Loop: Nested loop Function，Max Support 3 Layers

Protection: Software Protection

Power-down Data Protection

Setting Protection Condition,overvoltage protection, undervoltage protection,overcurrent protection, undercurrent protection,at the mean time protect the voltage and current value can be set.

Voltage and Current Testing Sample: 4-wire connecting

Noise: <85dB

Database: MySQL Database

Communication Interface: Ethernet Port

Per Unit Main Channels No.: 512

Dimensions: W*D*H：1450*380*1780（mm）

Battery clamp type: Upper and lower probe clamp

Battery clamp adjust range: Max 80mm,clamp spacing 34mm
