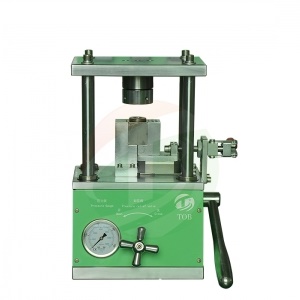

TOB TOB-CF650 Hydraulic Battery Sealing Machine For Cylinder Cell And Coin Cell (0-250 kg/cm^2)

Driving Force: Manual hydraulic pressing up to 5T

Pressure Gauge: 0-3500 psi (0-250 kg/cm^2)

Body: Stainless Steel

Crimping Dies: Six standard die selectable: CR123 /18650 / 26650 / 32650 / AA /AAA

Product Dimensions: 330mm(L) x 240mm(W) x 400mm(H)

Net Weight: 26 kg (58 lbs)

Datasheet

Application Notes

Customized die for other cylindrical cell types is available upon request

It is necessary to groove the opening end of the cylindrical case by using the TOB-GC650  grooving machine before sealing the cap

Each type of cylinder cell can only be sealed specifically by certain model of equipment. Please select the type of cylinder cell in the Product Options drop box to check the model number and price for the corresponding crimping die of each cylinder cell type
