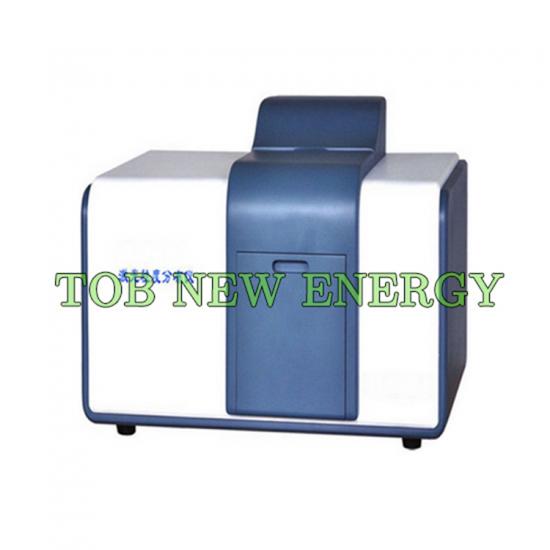

TOB TOB-BT-9300ST Laser Particle Size Analyzer (0.1-1000um, 500-2500ml/min)

Power Supply: 110V-240V selectable, Single Phase 50/60Hz

Measuring range: 0.1-1000um

Sampling mode: Built-in automatic circulating dispersing system

Repeatability error: <1%, (standard sample D50 error)

Accuracy error: <1%, (standard sample D50 error)

Measuring principle: Mie scattering theory

Software running environment: Win97

Interface mode: USB / RS232

Photoelectric detector: 86EA

Ultrasonic power: 50W

Circulating tank volume: 500ml

Flow: 500-2500ml/min

Source voltage: 220V, 50/60HZ

Dimension (L*W-H): 640*420*400mm

Testing objects

Varies kinds of non-metallic powder

All kinds of metal powder

Other kinds powder
