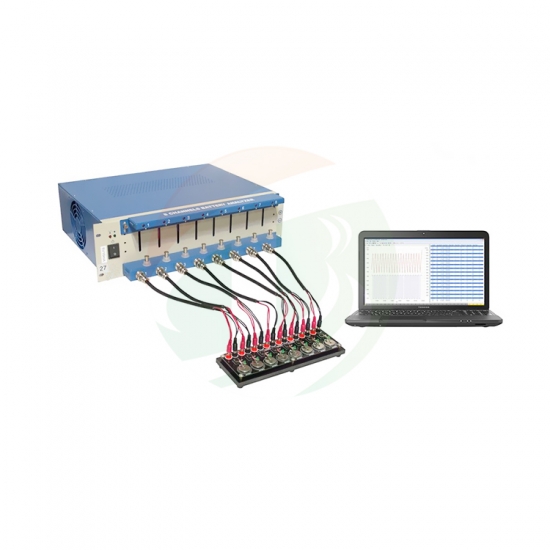

TOB TOB-BST8-5V1mA 5V1mA Button Battery Tester (0.002-1mA, 5V)

Electricity requirement: 110V AC or 220V AC selectable for universal use

Power Consumption: 30W

Current

Range: 0.002mA - 1mA

Accuracy: ±(0.05% of reading + 0.1% of range)

Voltage

Range: 0 - 5V programmable

Accuracy: ±(0.05% of reading + 0.1% of range)

Data register conditions: Time interval: 1 - 900s

Max. measurement cycles: 9999 cycles

Product Dimensions: 245mm(L) x 197mm(W) x 60mm(H)

Channels: Eight independent programmable channels

Each channel can set different working modes and functions independently

Net Weight: 11.5 kg (26 lbs)

Shipping Weight: 18 kg (40 lbs)

Shipping Dimensions: 610mm(H) x 510mm(W) x 356mm(H) (24" x 20" x 14")

Datasheet
