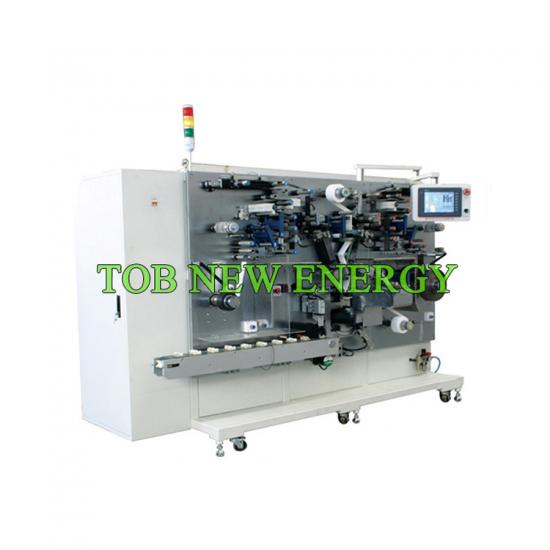

TOB TOB-AWM-P Automatic Winding Machine For Prismatic Battery

Source voltage: AC220V/50Hz/Single phase. Customized according country request

Power: 3.8KW

Compressed air: 0.4～0.6Mpa

Suitable battery size: According to customer’s requirement

Operating environment

Temperature : 20～35℃

Humidity: 5～55％HR

Material

Electrode

Feeding mode: Roller

Material width(mm): 100-200

Material thickness(um): 100-280

Material thickness(mm): Ф360

Inner diameter(mm): Ф76.2

Separator

Feeding mode: Roller

Material width(mm): 100-200

Material thickness(um): 16-25

Material thickness(mm): Ф280

Inner diameter(mm): Ф76.2

Tape

Feeding mode: Roller

Material width(mm): 20-60

Material thickness(um): 20-50

Material thickness(mm): Ф150

Inner diameter(mm): Ф76.2

Winding accuracy: 0.5mm

Winding error: 0.3mm

Separator tension: 0.05-0.5kg

Electrode tension: 0.05-0.5kg

Output: 4-7PPm

Dimension (L*W*H): 2400*1300*2000mm

Weight: 1200kg
