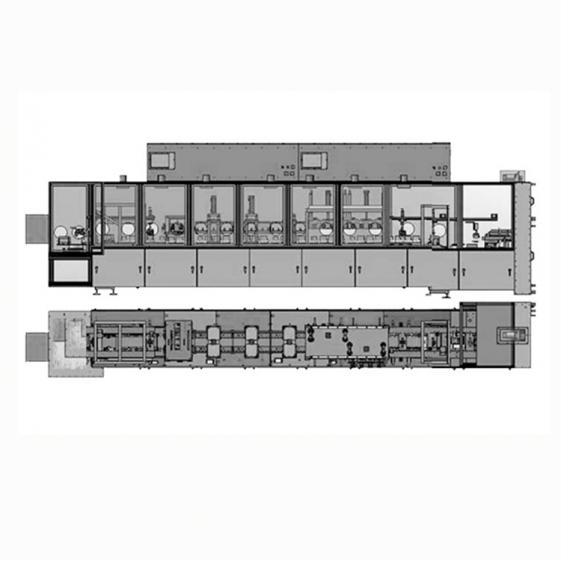

TOB TOB-AFMY-200 Automatic Battery Filling System For Polymer Battery

Source voltage: AC220V, Single phase. Customized according country request

Power: 10KW

Compressed air: 0.6MPa

Output: 6ppm, according to vacuum holding and sealing time

Vacuum flow: 350 M3/hour

Suitable battery size: Length 130-285mm, Width 100-170mm, Thickness 8-11mm

Structure configuration

Trough body3SET

Battery rotating mechanism1SET

Automatic feeding mechanism1SET

Weight before filling1SET

Into the jig transfer institution1SET

Pour institutions without electric pump1SET

Vacuum holding box3SET

Vacuum pre-sealing1SET

Discharge transfer institution1SET

Weight after filling1SET

Automatic discharging device1SET

Automatic receiving institutions2SET

With PLC, Touch screen,

Driving motor2SET

Project control system1SET

CAM drive motor2SET

Vacuum holding box: 1-99s can be set, with -95kpa vacuum degree

Vacuum pre-sealing machine: Sealing stamp width : 8mm

Sealing head length : 300mm

Sealing TEM: Max 260℃, adjustable

Sealing Head parallelism : ±0.02mm

Vacuum degree: -90KPa

Dimension (L*W*H): 8000*1500*2400mm

Weight: 4000kg
