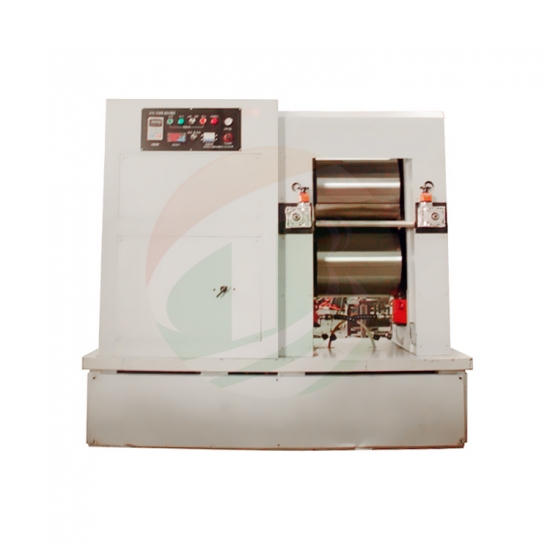

TOB TOB-703B-400*450mm/2 Oil Pressure Controll Roller Press Machine (400mm)

Type:Vertical 2 Roll Press type

Source voltage:380V/50Hz

Power:7.5KW

Roller diameter: Dia * width = 400*450mm

Suitable electrode width: 400mm

Speed: 7r.p.m

Pressure: 200T

Max rolling gap adjustment: 0-2mm adjustable

Structure

1, Roll surface roughness, surface roughness of 0.4um

2, Roll hardness: HRC62-65, roll conditioning: HB280-300, 18mm or higher quenching depth and roll cylindricity less than 0.003 mm

3, Adopt p52 precision bearings

4, Roll gap adjusting : automatic locking device, 0-2 mm is adjustable

Dimension(L*W*H): 2100*1150*1700mm

Weight: About 5T
