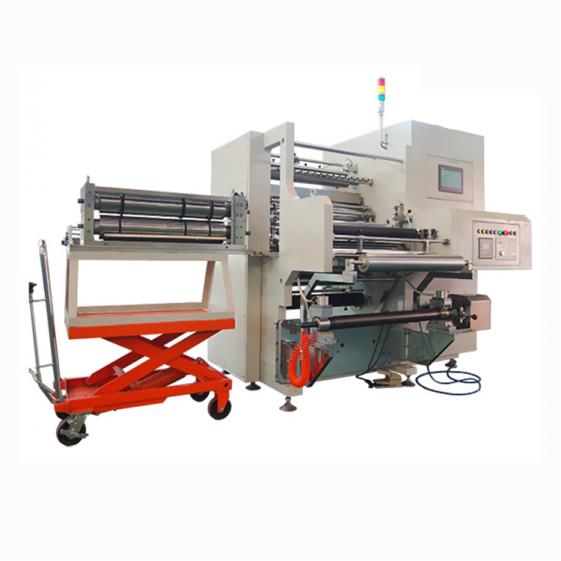

TOB TOB-110BH-600 Automatic Slitting Machine For Battery Electrode (500mm)

Source voltage: 380V/50Hz/Three phase. Customized according country request

Power: 4KW

Compressed air: 0.6MPa with 0.04 M3/min flow

Cutting materials: 50-300um thickness battery electrode made by 9-30um aluminum foil or copper foil with coating, rolling press.

Unreeling mode: Uniaxial passive unreel, automatic correction, constant tension control

Material roller size: Max Dia500*Width500mm

Max cutting width: ≤520mm

Reel and Unreel roller: Slip gas rose axis with diameter 76.2mm(3 inches)

Reel and Unreel weight: 150～300kg

Cutter knife diameter: φ130mm

Cutting burr: ≤10μm without Without a ripple

Machine roller width: 650mm

Machine speed: 50m/min, continuous and adjustable

Cutting accuracy: ±0.1mm

Dimension (L*W*H): 1800*1800*1600mm

Weight: 2000kg
