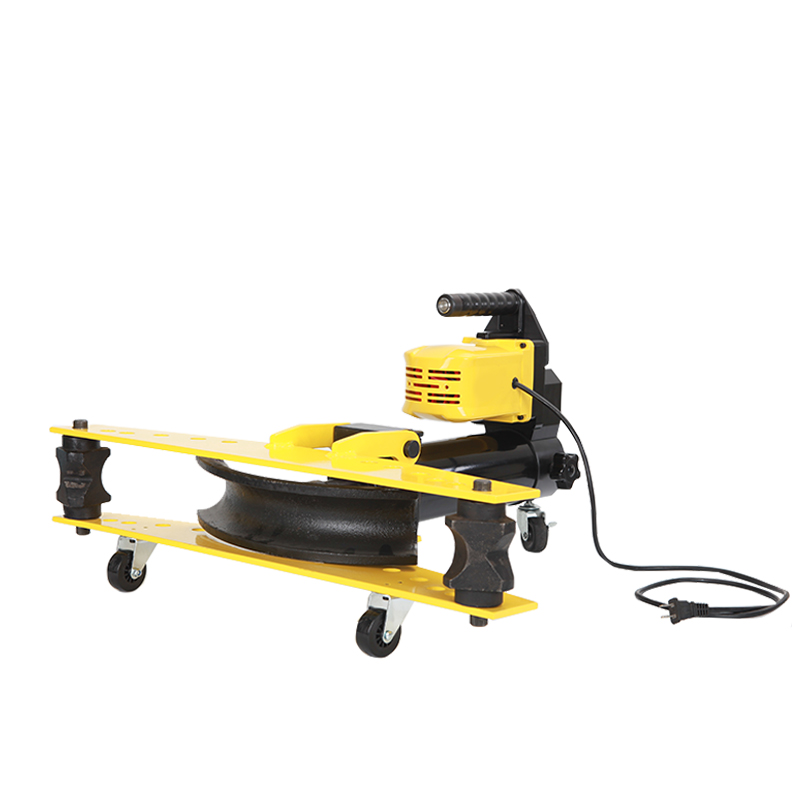

TLP HW-2E Electric Hydraulic Pipe Bender (13T; 250mm)

Hydraulic Ram Output: 13 Ton

Ram Stroke: 250 mm

Bending Range (O.D.): Ø21.3 – Ø60 mm

Bending Shoes: 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”

Gross Weight: 66.9 kg

Packing Size: 96 × 35 × 28 cm

The Manual Hydraulic Pipe Benders are designed for precision cold bending of thick-walled pipes (gas, water and steam pipes, non-heated black iron pipes, galvanized pipes, schedule 40 & 80) up to 900 following GB/T 3091,DIN 2440,EN 10255,BS1387 standards.

These benders are ideal for plumbing, sanitary and heating installationon on contruction sites, for apparatus and boiler making and for industrial applications.

Characteristics:

Capable of bending angles from 0° to 90° on pipes ranging from 1/2”to 4”.

Cold bending, no pre-warming of pipe is required.

Effective work with the electric pump.

Carry handle and casters ensure quick and easy move from site to site.

All compoents supplied in a wooden case, including electric pump, the bender, bending shoes and service pack.
