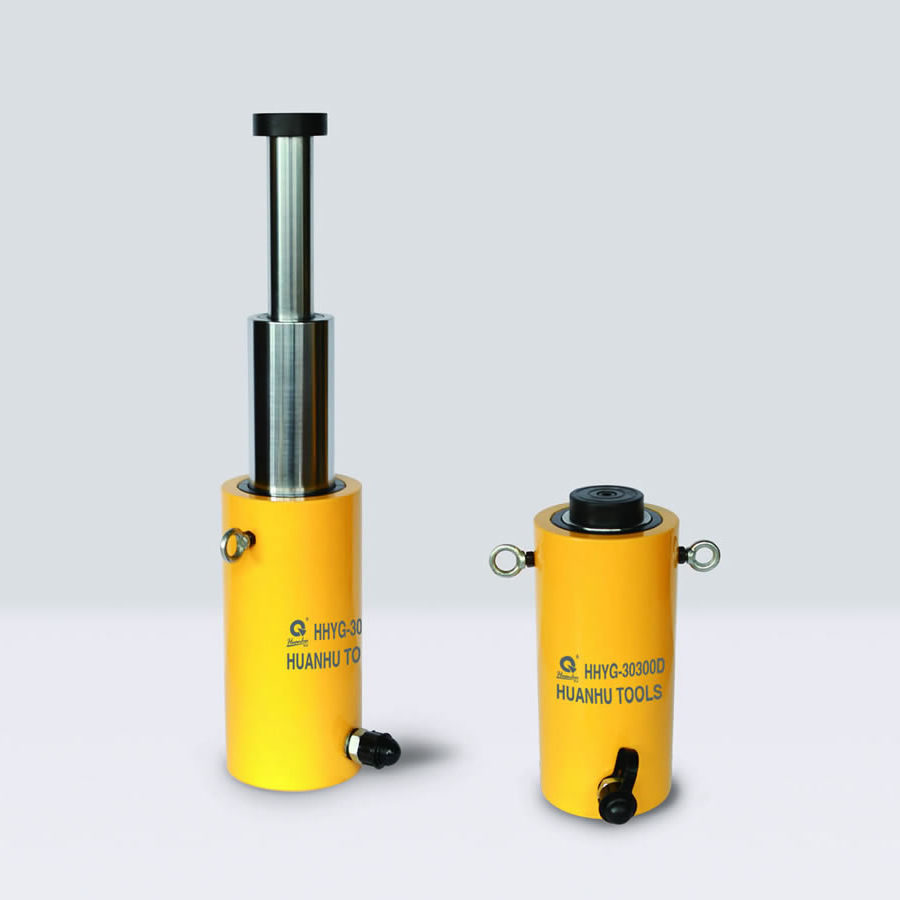

TLP HHYG-30600D General Purpose Telescopic Cylinder (30T; 200mm)
ManufacturerTLP(View more products from this manufacturer)
ModelHHYG-30600D
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Working pressure：700bar
Cylinder capacity: 30 ton
Number of stages: 3/2/1
Capacity @700 bar: 309 kN / 665 kN / 1496 kN
Stroke per stage: 200 mm
Total stroke: 600 mm
Effective area: 44.2 cm² / 95.0 cm² / 213.7 cm²
Oil capacity: 6803 cm³

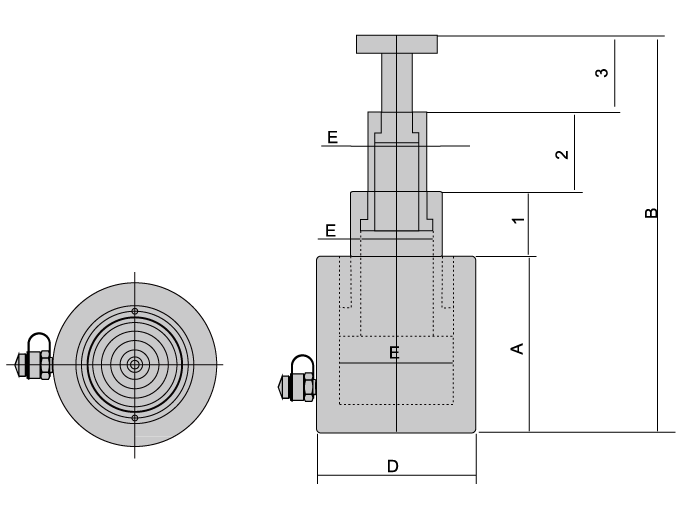

Closed height (A): 366 mm
Outside diameter (D): 220 mm
Inside diameter (E): 110 mm / 165 mm
Gross weight: 106 kg
Standard saddle diameter (J): 142 mm
Saddle protrusion from plunger (K): 23 mm
Handle: Eye bolts
Recommended pump: HHB-700A

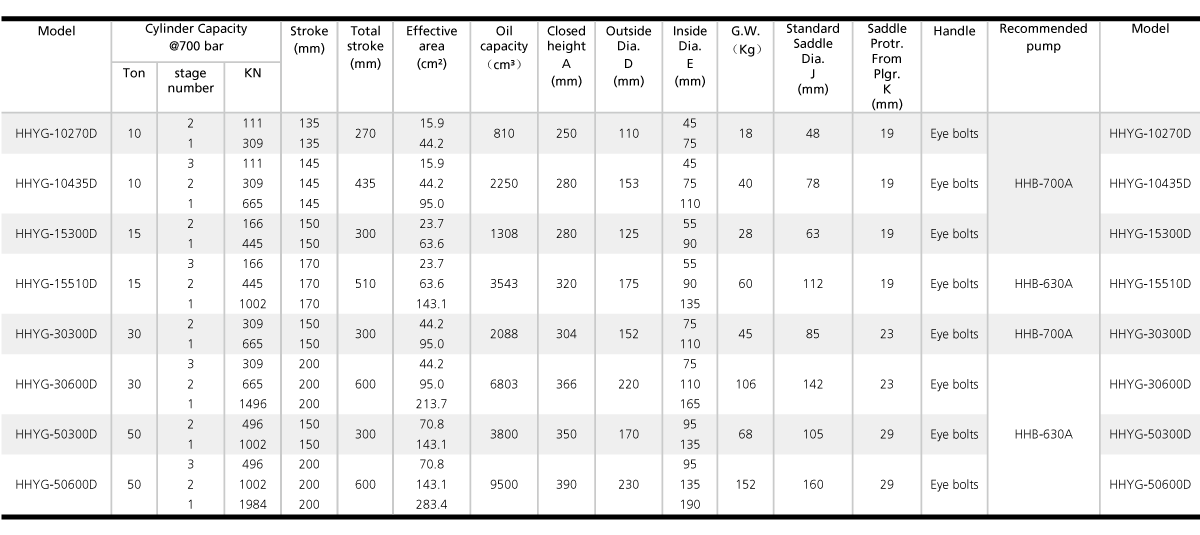

Parameters:
