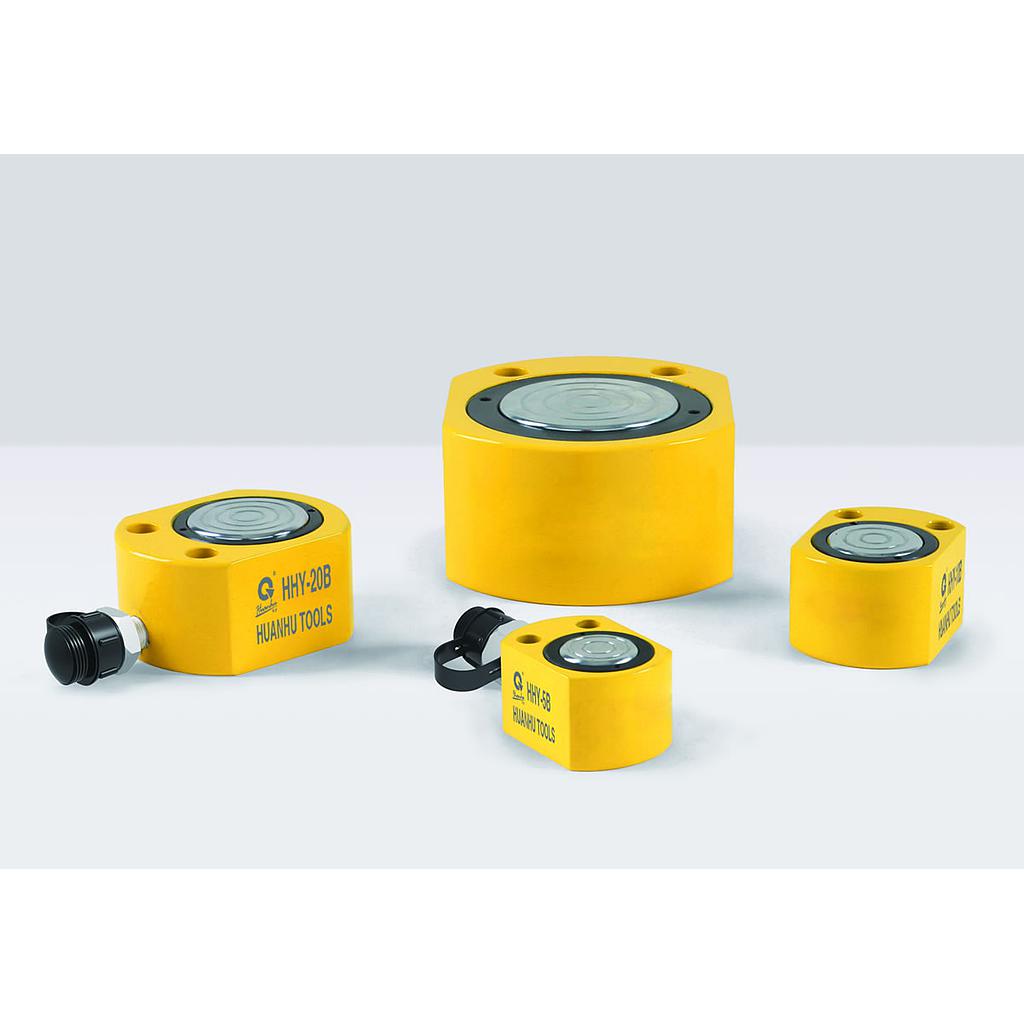

TLP HHYG-100B Single-acting Low Height Cylinder (100T; 16mm)
ManufacturerTLP(View more products from this manufacturer)
ModelHHYG-100B
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Working pressure：700bar
Cylinder capacity: 100 Ton / 1002 kN
Stroke: 16 mm
Effective area: 143.1 cm²
Oil capacity: 200 cm³
Closed height (A): 91 mm
Extended height (B): 107 mm
Outside diameter (D×L): 188 × 160 mm
Inside diameter (E): 135 mm
Piston rod diameter (F): 100 mm
G.W.: 16.8 kg
Recommended pump: HHB-700

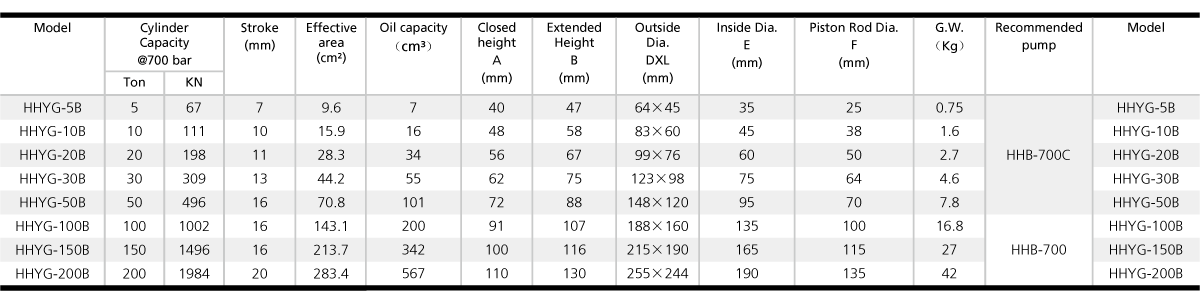

Parameters:
