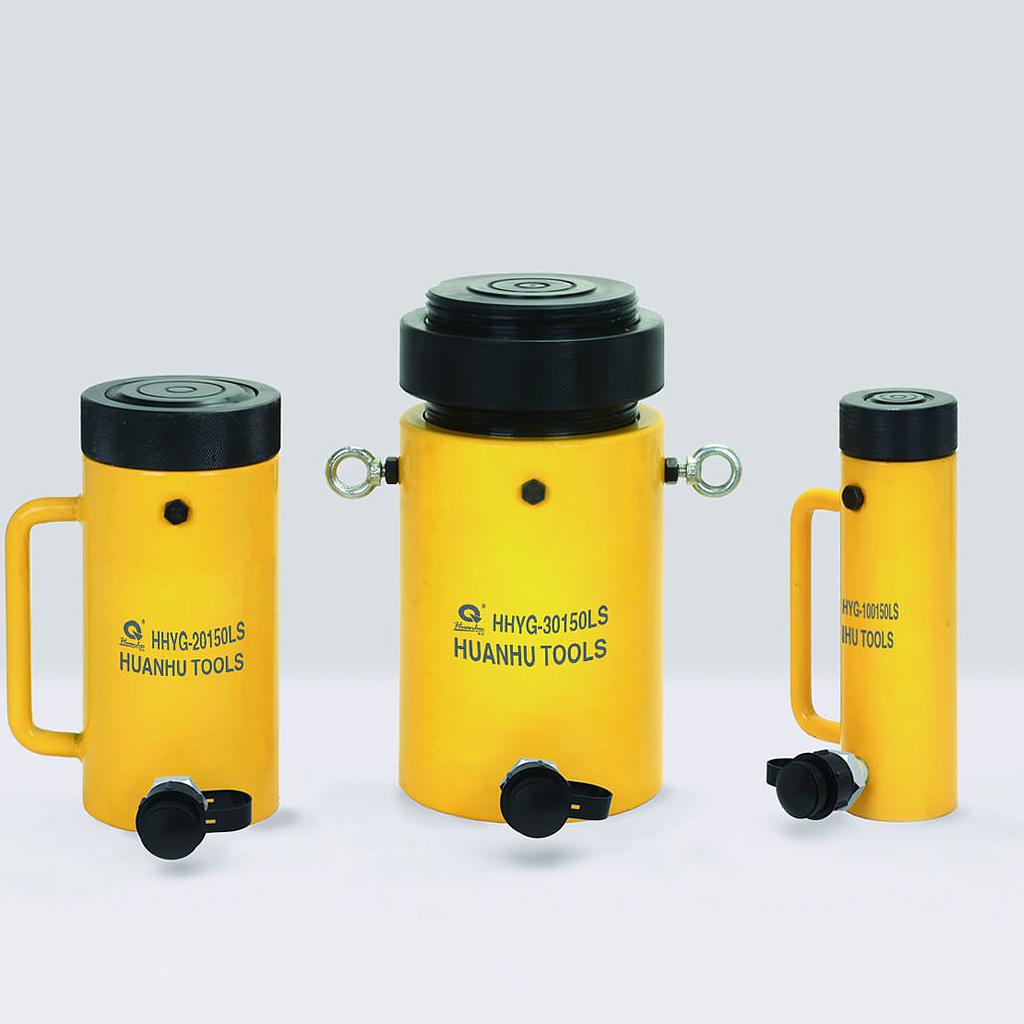

TLP HHYG-100100LS Single-acting, Lock Nut Cylinder (100T; 100mm)
ManufacturerTLP(View more products from this manufacturer)
ModelHHYG-100100LS
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Cylinder Capacity @700 bar (Ton): 100
Cylinder Capacity @700 bar (KN): 1002
Stroke (mm): 100
Effective area (cm²): 143.1
Oil capacity (cm³): 1548

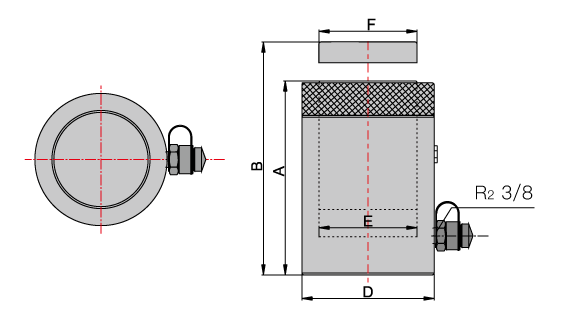

Closed height A (mm): 236
Extended height B (mm): 336
Outside Dia. D (mm): 168
Inside Dia. E (mm): 135
Piston Rod Dia. F (mm): 135
Locknut height (mm): 44
G.W (kg): 39
Handle: Eye Bolts
Recommended pump: HHB-700A

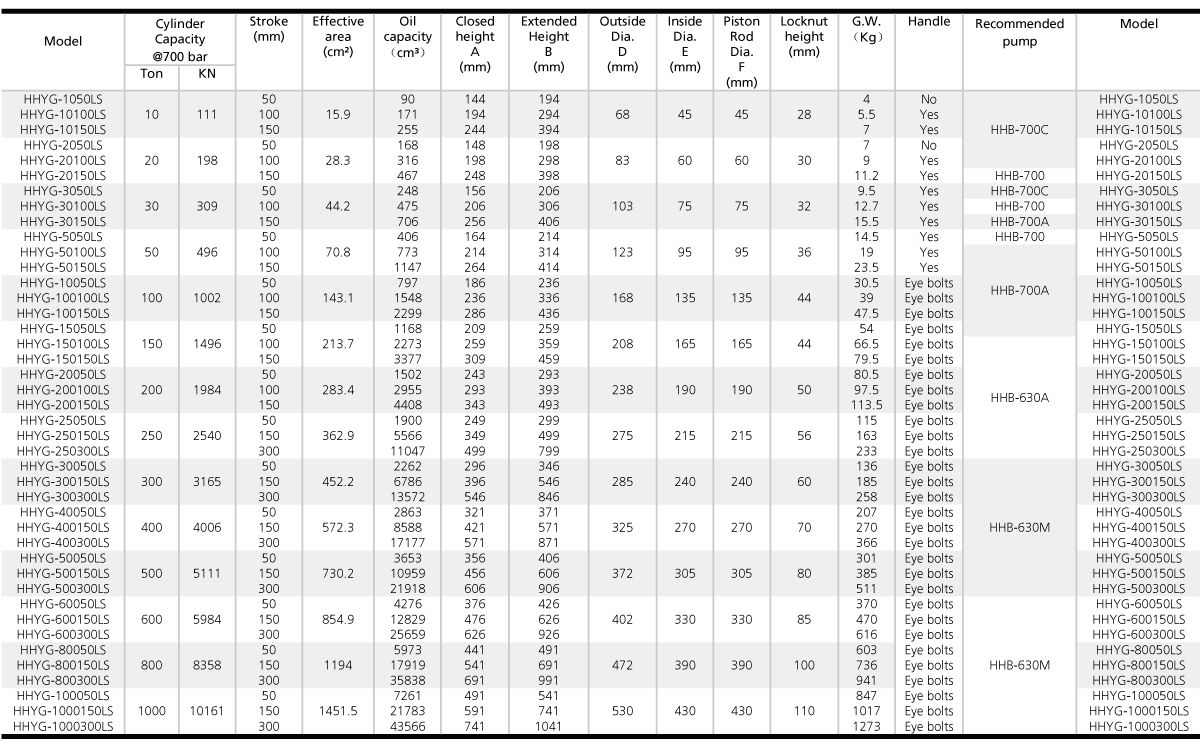

Parameters:
