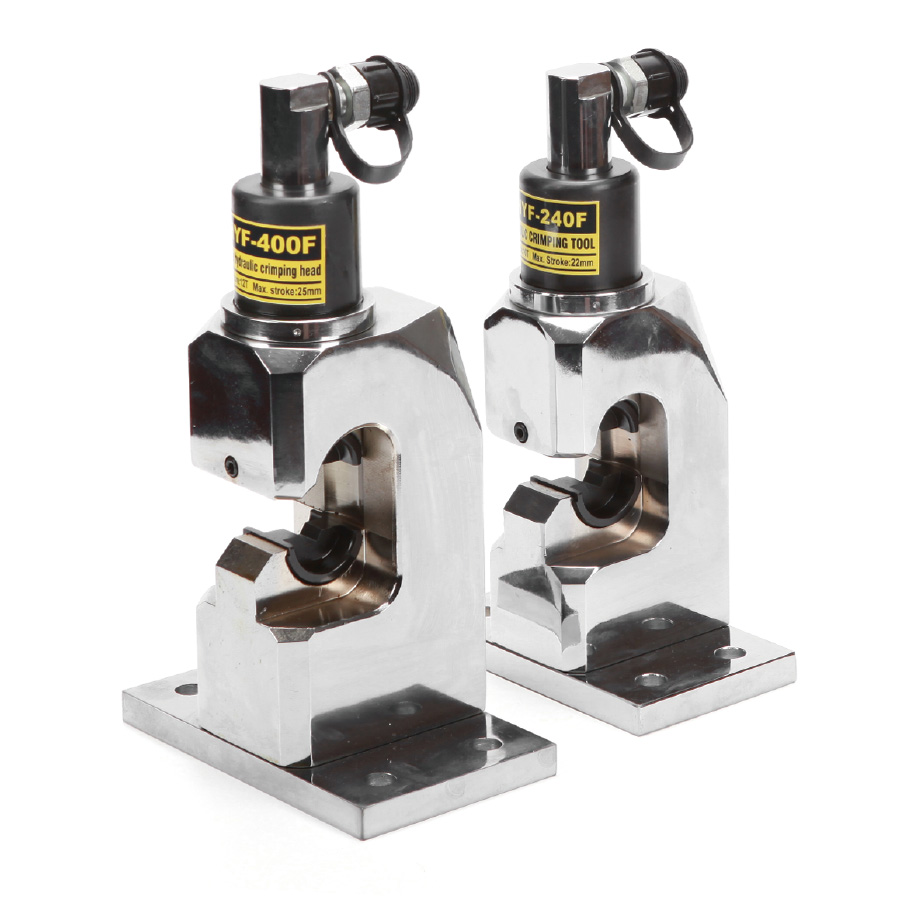

TLP HHYF-400F Hydraulic Crimping Tool for workbench mounting (12T; 25mm)

Output Force (ton): 12

Ram Stroke (mm): 25

Crimping Range (mm²): 16 – 400

Crimping Dies (mm²): 50, 70, 95, 120, 150, 185, 240, 300, 400

Crimp Pattern: Hexagonal type

Gross Weight (kg): 16.7

Packing Size (mm): 190 × 120 × 320

Characteristics:

For workbench mounting

Large crimping range

●C opening head, easy to change crimping dies.

●Supplied with R2 3/8 male coupler and dust cap.

●For connecting to hydraulic pumps with 700 bar operating pressure

for best possible crimping results.
