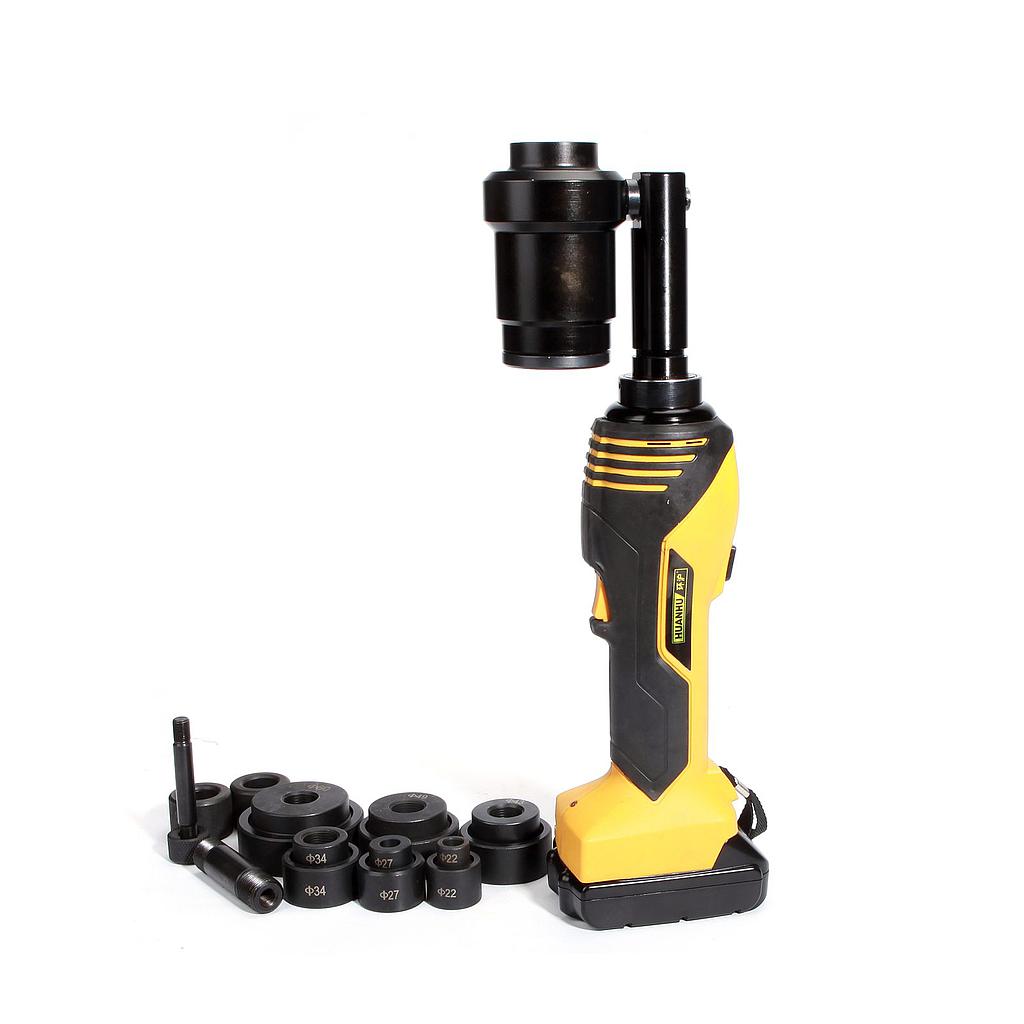

TLP HHYD-8F Cordless Hydraulic Knockout Puncher (8T; 12mm)

Output force: 8 ton

Stroke: 12 mm

Battery capacity: 90 punching cycles

Max thickness: 1.6 mm stainless steel / 3.2 mm mild steel

Punch range: 16–60 mm

Punch dies: Ø22, Ø27, Ø34, Ø43, Ø49, Ø60 mm

Battery: 18V / 4.0Ah Li-ion

Charging time: 2 hours

Battery quantity: 2 pcs

Charger: 1 pc

Sealing ring: 1 set

Machine weight: 15 kg

Packing size: 585 × 500 × 170 mm

Characteristics:

Ideal tools for on-site hole punching in electric control panels and metal plates.

Simple operation and quick punching. Flat, clean and burr-free cut.

●Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.

●10000+ cycle service life.

●Ram retracts to original position automatically when operation is complete.

●Manual retraction in case of need.

●Audible buzzer and red LED light in case of error.

●Quick motor stop for higher user safety.

●Powerful 18V Li-ion battery with low battery warning.

●Ergonomic 2-component grip area and balanced center of gravity.

●Sturdy plastic storage box.
