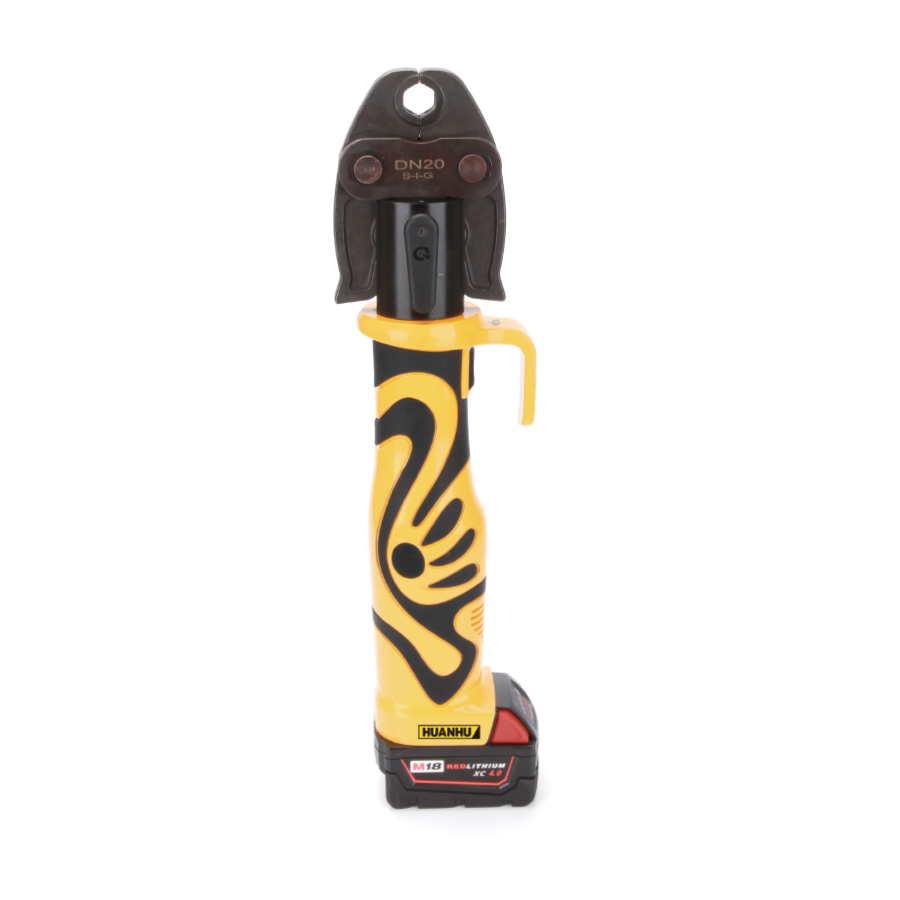

TLP HHYD-1550A Battery-operated pressing tool (3.2T)

Output force: 3.2 ton

Stroke: 40 mm

Battery capacity: 300 press cycles (DN20 stainless steel pipe)

Pressing time: 5–8 s

Battery: 18V / 4.0Ah Li-ion

Mould type: Round

Pressing jaws: DN15, DN20, DN25, DN32, DN40, DN50

Battery quantity: 2 pcs

Charger: 1 pc

Seals: 1 set

Weight: 25 kg

Characteristics:

Suitable for precise and reliable pressing of fittings DN15-D50

Easy and simple operation, high efficiency and safety.

Pressing jaws confirm to standard GB/T 19228.

Pressing stainless steel fittings up to 54 mm.

Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.

10000+ cycle service life.

Ram retracts to original position automatically when operation is complete.

Manual retraction in case of need.

LED Display indicates operation temperature and times.

Quick motor stop for higher user safety.

Powerful 18V Li-ion battery with low battery warning.

Ergonomic design, extremely light and easy to hold.
