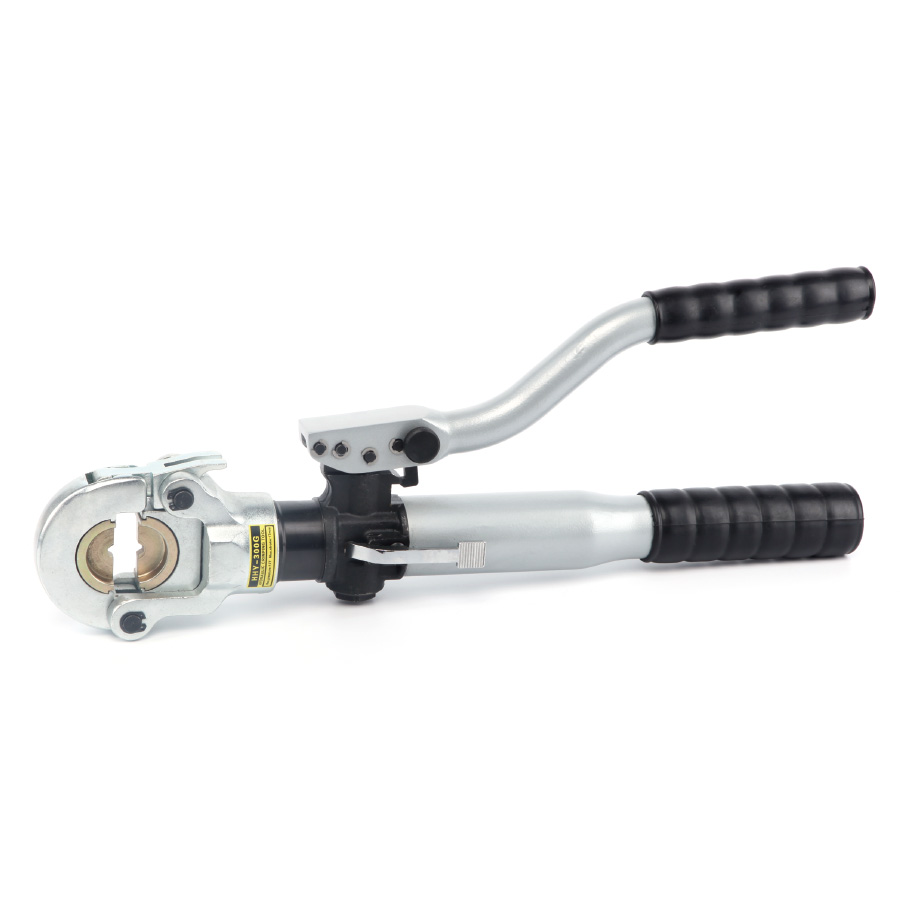

TLP HHY-35 Hand Operated Hydraulic Crimping Tool (11T; 32mm)

Hydraulic Ram Output: 11 Ton

Ram Stroke: 32 mm

Crimping Range (mm²): 16–400

Crimp Pattern: Hexagonal type

Crimping Dies (mm²): 50, 70, 95, 120, 150, 185, 240, 300, 400

G.W. (kg): 10.9

Packing Size (mm): 770 × 140 × 225

Characteristics:

Designed for the electrical contractor and electric utility lineman who is confronted with larger cable diameter and larger connectors.

Built-in safety valve

●Strong, lightweight fiberglass handles.

●Wide open C crimping head, rotating 180 degree

●Twist handle pressure release

●Built-in pressure relief valve for overload protection.

●Two-speed pump to reduce cycle time.

●Molded plastic carry case.
