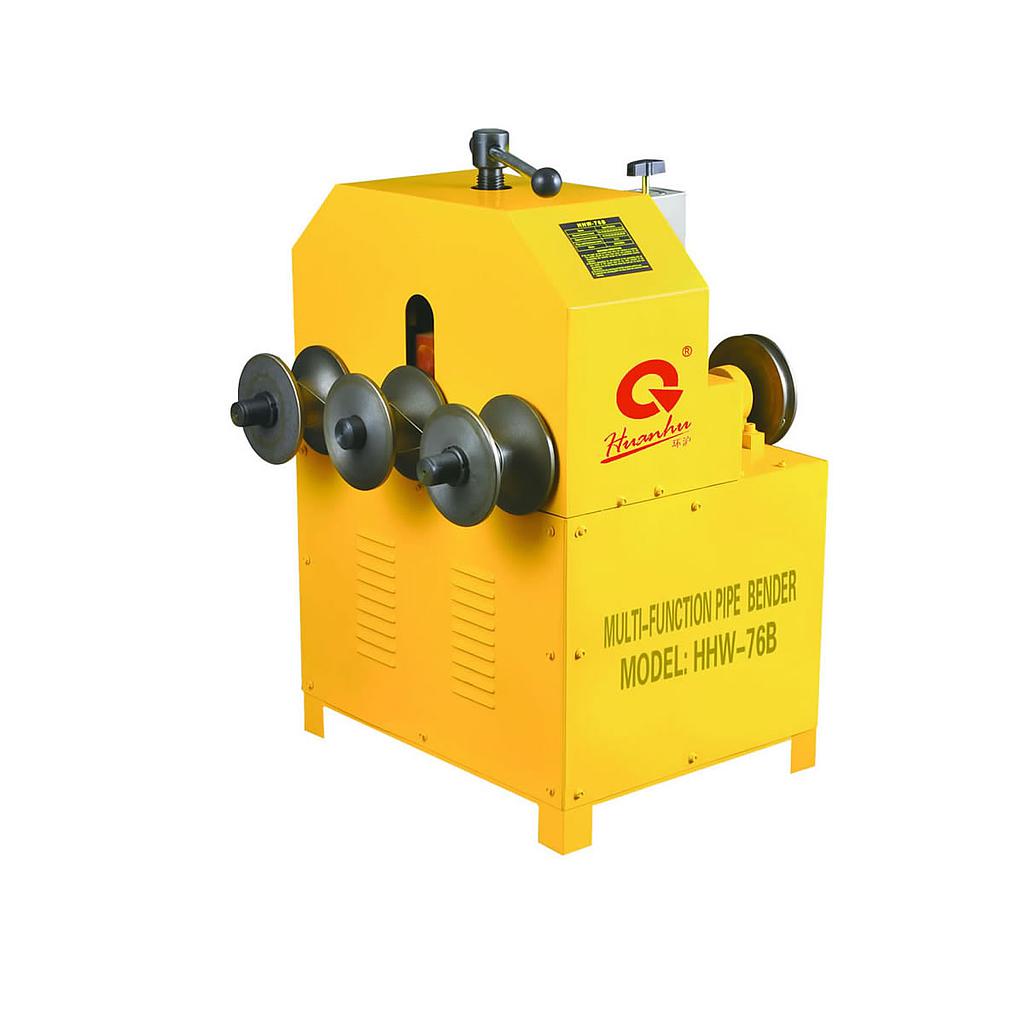

TLP HHW-76B Section & Tube Rolling Machine

Tooling for Round Tubes (mm): 16, 19, 22 & 63 (2-IN-1), 25 & 51 (2-IN-1), 32 & 38 (2-IN-1), 76

Tooling for Square Tubes (mm): 30 & 50 (2-IN-1), 16 & 25 & 40 (3-IN-1), 19 & 22 & 38 (3-IN-1)

Motor: 220V or 380V, 1.5 KW, 1400 rpm

This specially designed section and tube rolling machine can be used on either side front or rear of machine, the front is designed to handle the larger tube as the rear is capable of rolling smaller tubes.

Toolings made of grey cast iron allows long service life.

Characteristics:

For making quick work of large radius bends and doing complete circles.

Especially applicable to the production of steel greenhouse frame.

Capable of rolling bending thin-walled mild steel, stainless steel round & square tubes.

Foot pedal with emergency stop available on request.

Two driving rollers and one driven roller.

Manual adjustment of top roll.
