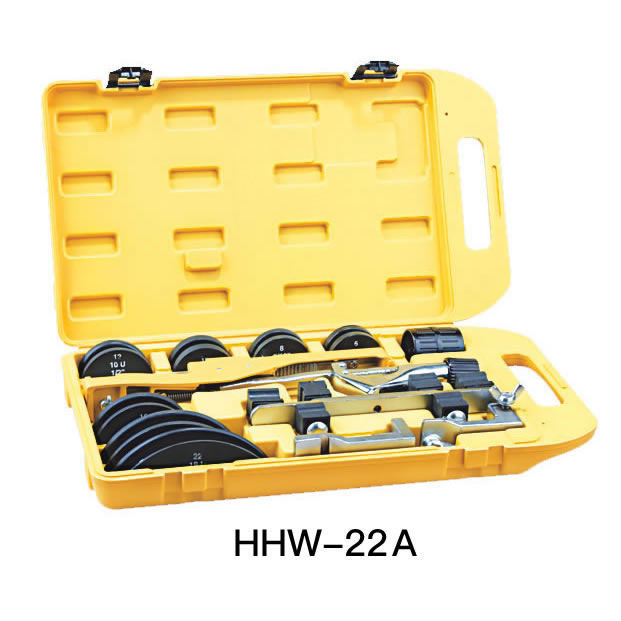

TLP HHW-22A Manual Tube Bender (Ø6 – Ø22 mm)

Bending Range: Ø6 – Ø22 mm

Bending Shoes (inch): 1/4"(6mm), 5/16"(8mm), 3/8"(10mm), 1/2"(12mm), 5/8"(16mm), 3/4"(18mm), 7/8"(22mm)

Wall Thickness of Tube: 1.0 mm

For accurate one handed bending up to 900, Ø6-22mm(1/4”- 7/8”)

Suitable for bending soft copper tubes, coated copper tubes and multi-layer composite tubes.

Universal use in sanitary, heating, air conditioning, refrigerating and hydraulic applications.

Saving on fittings, storage, procurement, soldering joints, pressing joints and working hours.

Accurate bending even in restricted spaces.

Production of U-bends, counter bends, swan-neck bends and connecting bends possible at all levels.

Easy and rapid changing of the bending shoes.

Fast release and removal of the bending shoes.

Handy and lightweight, easy move to job site.
