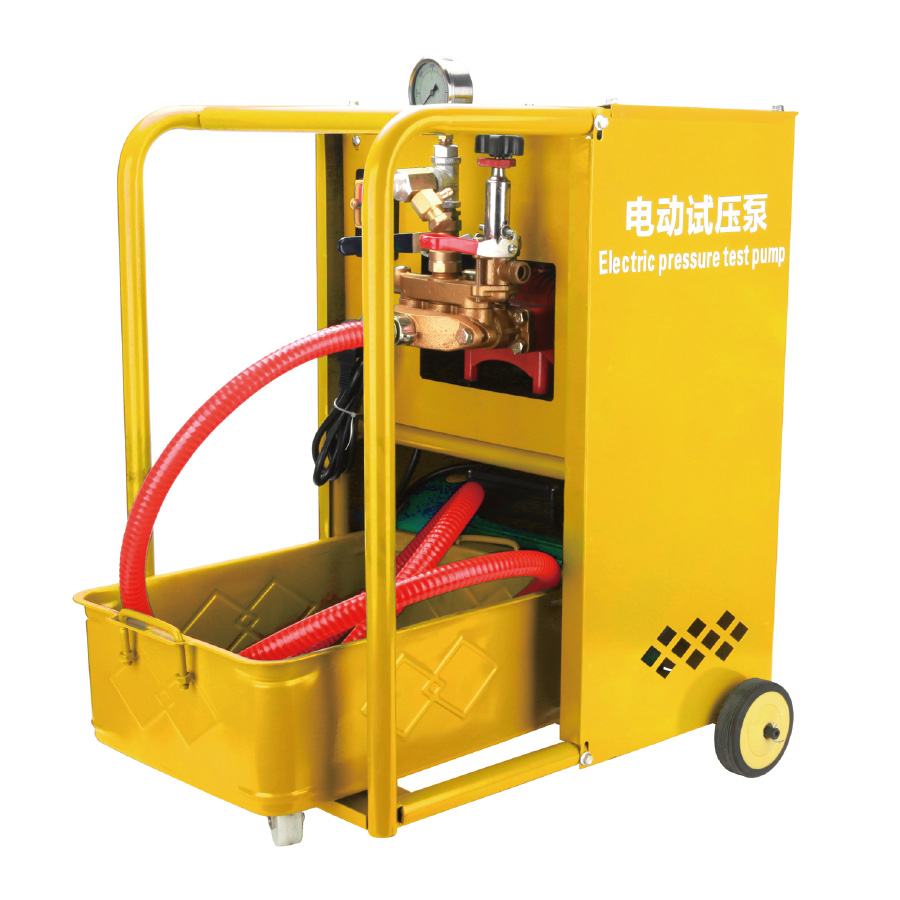

TLP HHS-360 Electric Pressure Testing Pump (0 – 10 MPa)

Voltage: 220V / 380V

Power: 2.2 kW / 3 kW

Pressure Range: 0 – 10 MPa

Nominal Flow: 40 L/min

Frequency: 50 Hz

Motor Rotation Speed: 1400 r/min

Gross Weight (G.W.): 50 kg

Characteristics:

Testing of water lines & containers

Motor driven, time- and labour-saving, high portabiity/mobility for easy transport to job site

Comfortable to use, effective automatic filling test pipe or pressure vessel

Simple structure, easy to use, three cylinder large flow, suitable for 4 inch pipeline and less pipeline test

The inlet pipe is equipped with disc filter, which can effectively filter impurities and prolong the service life of the pump

High strength pressure hose with steel core effectively prevents errors caused by hose expansion during operation

Oil-filled pressure gauge, which can prevent pressure fluctuation and damage pressure gauge,it will be long service life

Cold and heat resistant steel container protected by epoxy resin coating

Roller is installed at the bottom for more convenient movement on site
