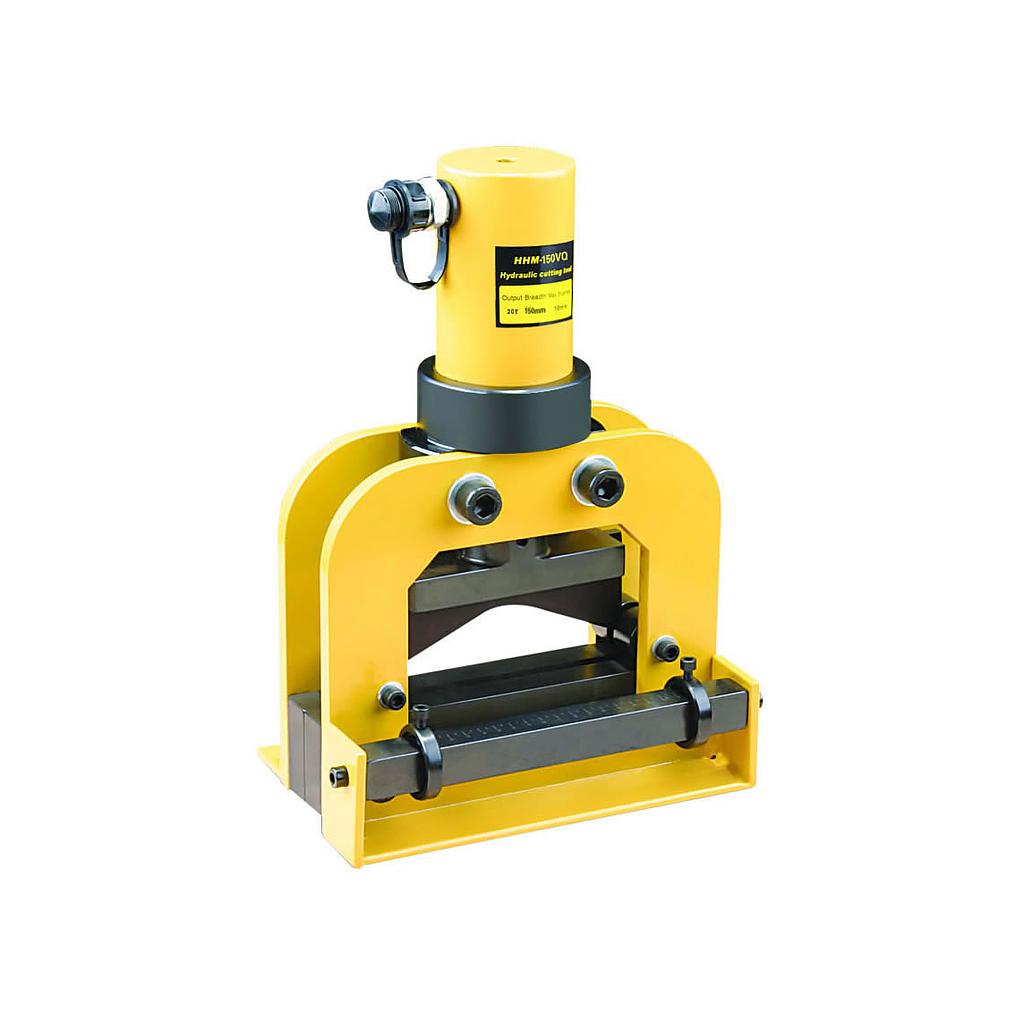

TLP HHM-200VQ Hydraulic Busbar Cutter (20T)

Output force: 20 ton

Copper/Aluminum busbar width: 200 mm

Max copper/aluminum thickness: 10 mm

Machine weight: 33 kg

Packing size: 38 × 24 × 46 cm

Characteristics:

●V shape cutting blade.

●Very large 210mm open for easy insertion of busbars.

●Etched ruler and lock loops for precise positioning of busbars.

●Flat and clean cut edge.

●Singe acting, spring return.

●Quick set-up on the work site.

●Bar support on the bottom provides extra stability.

●Supplied with R2 3/8 male coupler and dust cap.

●Operated by hydraulic pump with rated pressure 700 bar.
