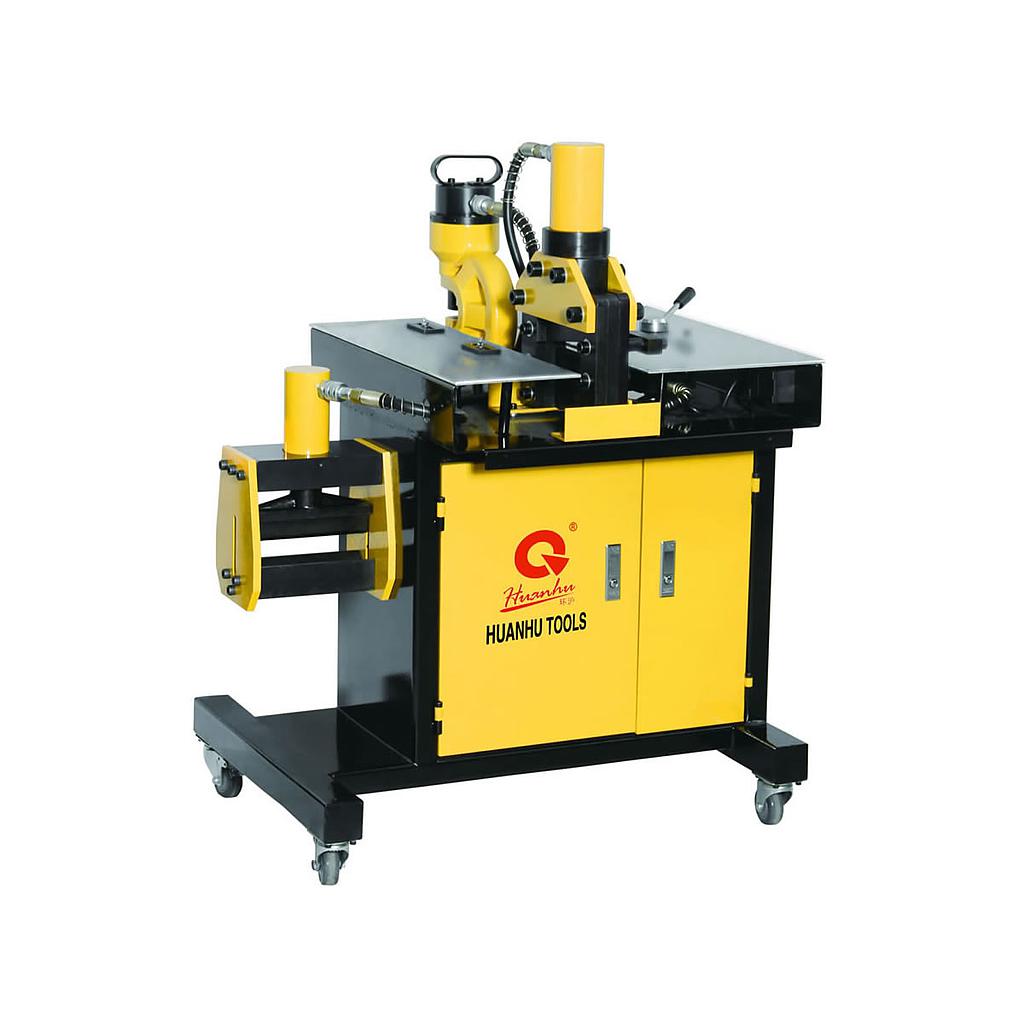

TLP HHM-120H 3-in-1 Busbar Processor (23T)

Voltage: 220V/380V

Output force: 23 ton

Max shearing/bending width: 120 mm

Max punching, shearing, bending thickness: 10 mm

Standard punching dies: 3/8" (11.1 mm), 5/8" (17.5 mm), 1/2" (14.3 mm), 3/4" (20.6 mm)

Machine weight: 140 kg

Packing size: 69 × 55 × 101 cm

Characteristics:

The basic unit transforms into a cutting, bending or punching machine within seconds by changing the working parts.

●Working pressure 700 bar, powerful yet quiet running.

●Robust and stiff frame,strong structure.

●High quality cutting, bending and punching, fast cycle time.

●High operating safety with the built-in safety system.

●Low-maintenance, long service life.
