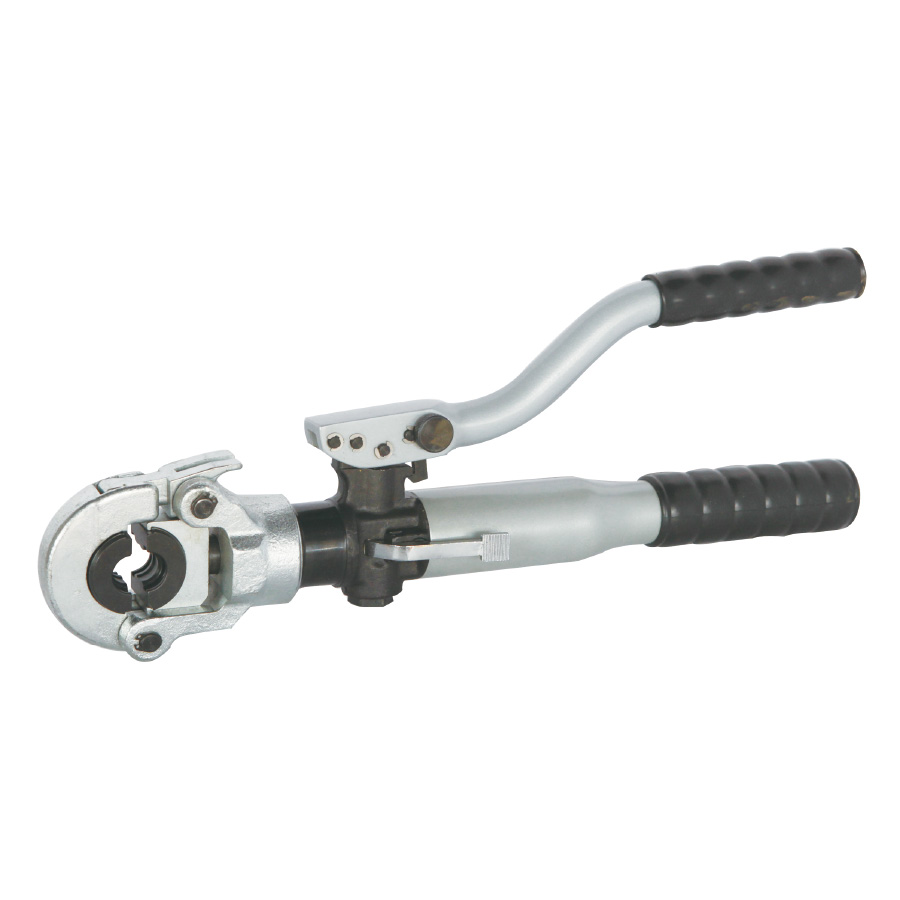

TLP HHF-32L Manual Hydraulic Radial Press (6.5T)

Output force: 6.5 ton

Crimping range: 16–32 mm

Mould type: Round

Pressing jaws: 16, 20, 25, 32

Weight: 8.2 kg

Characteristics:

Pressing Aluminum Plastic Tubes, PEX Pipes, PB pipes with copper fittings, copper adapters.

Closed crimping head, flip top style, rotatable

Aluminum pump lever and housing result in low weight.

Thanks to the automatic retraction function, poor crimps are avoided, more safety and shorter intervals between crimping operations.

Manual retraction in case of need.

The rotatable head permits to work in tight locations.

Faster operation with less force thanks to the 2-stage hydraulic system.

Sturdy steel storage box
