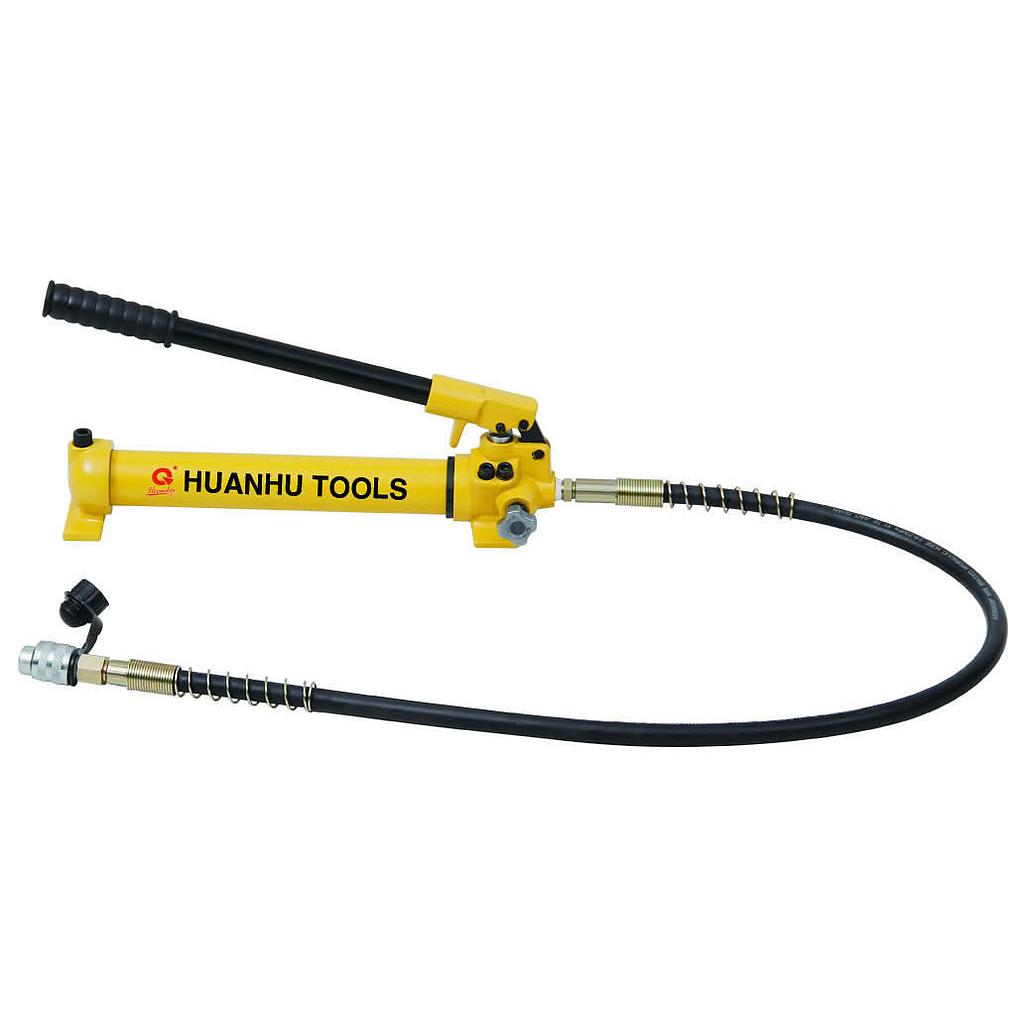

TLP HHB-700F Hand Operated Hydraulic Pump (20 / 700 bar)

Working pressure (low/high): 20 / 700 bar

Oil displacement per stroke (low/high): 13 / 2.3 cm³

Reservoir capacity (oil/usable): 1000 / 700 cm³

Dimensions (L × B × H): 620 × 115 × 120 mm

Weight: 6 kg

Characteristics:

Made of aluminum alloy

One-way pump for single-acting cylinders or tools

Supplied with high pressure hose 1.8 meters and R2 3/8 quick coupler with dust cap.

Working pressure 700 bar

●Lightweight, robust, durable and compact.

●Two-speed hydraulic system for fast and easy operation.

●Reduced handle effort and ergonomic grip for less operator fatigue.

●Handle lock and lightweight construction for easy carrying.

●Large and comfortable release knob for improved control of pressure release.

●Internal pressure relief valve for overload protection.

●Large oil capacities to power a wide range of cylinders or tools.
