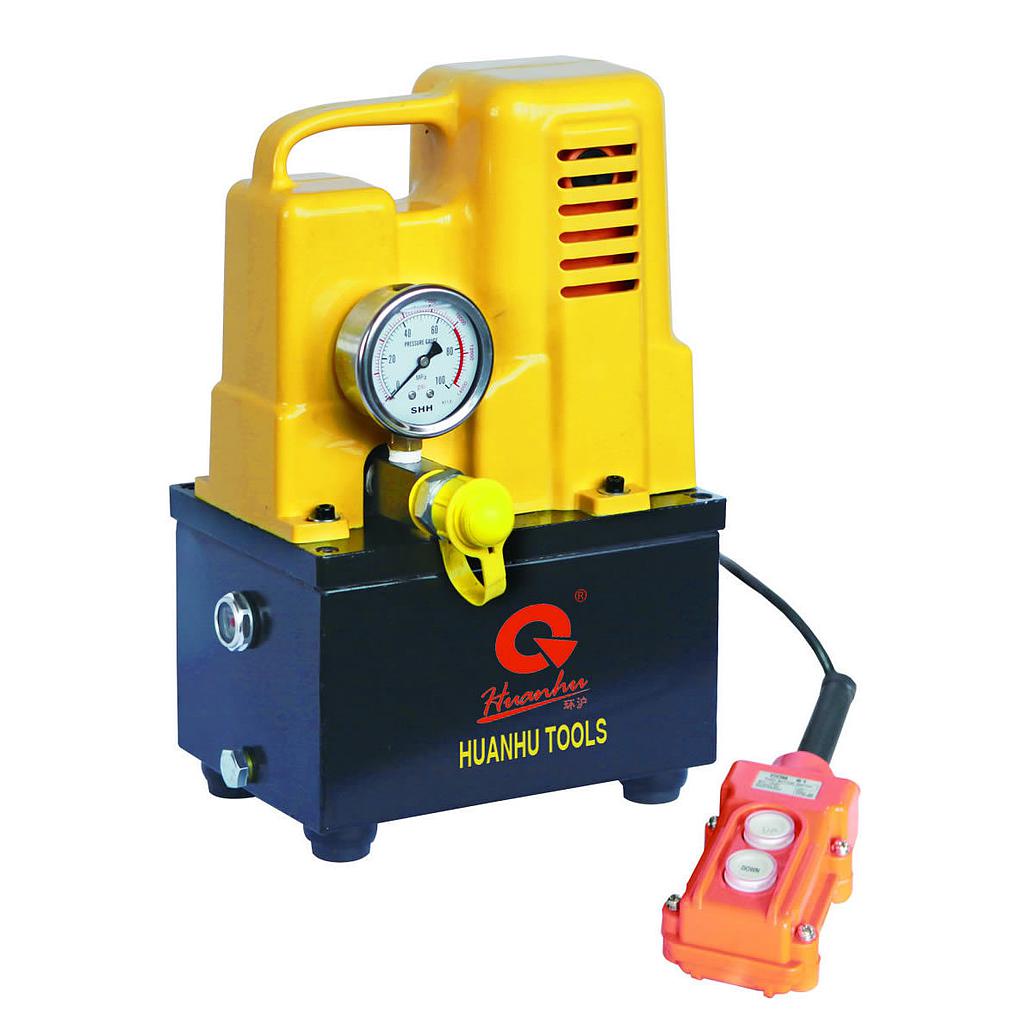

TLP HHB-700D Electric Powered Hydraulic Pump (20 / 700 bar)

Power rating: 0.35 kW

Working pressure (low/high): 20 / 700 bar

Flow rate (low/high): 5 / 0.5 L/min

Usable oil capacity: 4 L

Dimensions (L × B × H): 390 × 235 × 295 mm

Weight: 17.5 kg

Characteristics:

These portable pumps are best suited to power small to medium size single-acting cylinders or hydraulic tools,

working pressure 700 bar.

Its lightweight and compact design make it ideal for applications which require easy transport of the pump.

●Light weight and portable.

●Large easy-carry handle for maximum portability.

●Two-speed operation reduces cycle times for improved productivity.

●High strength molded shroud protects motor and electrical components from moisture,dirts and damage.

●All valves are 3 position for Advance-Hold-Retract.

●Control pendant allows remote valve operation for operator safety.

●Internal pressure relief valve prevents overloading.

●Oil level glass for oil level monitoring.

●Each pump comes with 1.5 meter hose and R2 3/8 quick coupler with dust cap.
