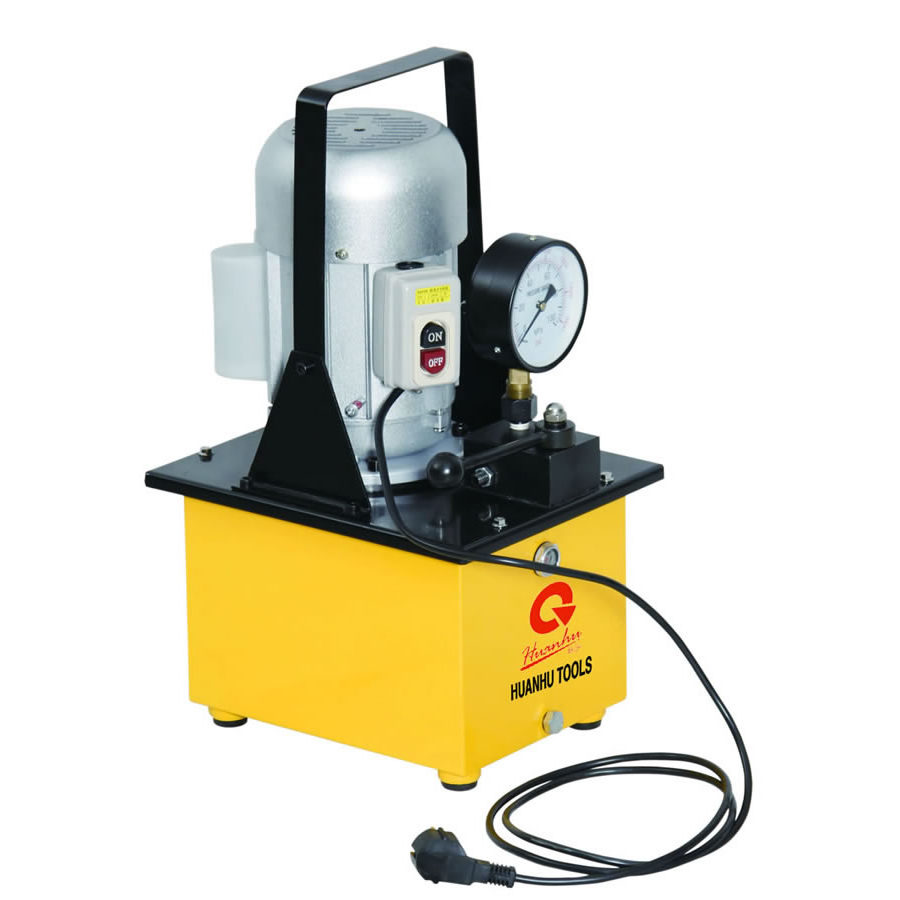

TLP HHB-630E Electric Powered Hydraulic Pump (20 / 700 bar)

Power rating: 0.75 kW

Working pressure (low/high): 20 / 700 bar

Flow rate (low/high): 5 / 0.7 L/min

Usable oil capacity: 8 L

Dimensions (L × B × H): 325 × 255 × 565 mm

Weight: 25.9 kg

Characteristics:

Working pressure: 700 bar

Oil reservior: 8 liters

Foot switch enables hands-free remote control

Solenoid valve makes the pumps ideal for production and lifting

HHB-630E is one-way pump for single-acting appliations.

●Lightweight and carrying handle allows for easy transport of the pump.

●Two-speed operation reduces cycle time for improved productivity.

●The valves are 3 position for Advance-Hold-Retract.

●The pumps are equipped with pressure gauge, which minimizes the risk of overloading and ensure long, dependable service.

●Internal pressure relief valve prevents overloading.

●Each pump comes with 1.5 meter hose and R2 3/8 quick coupler with dust cap.
