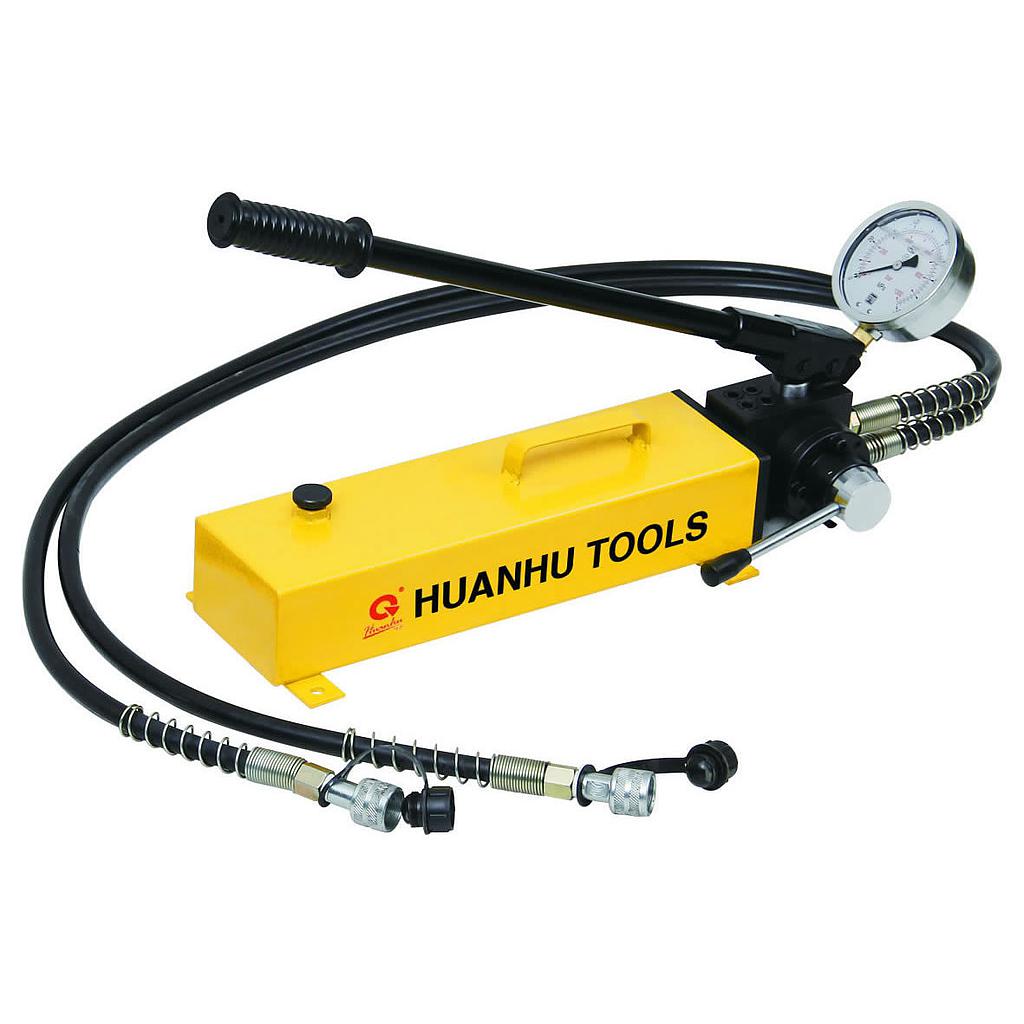

TLP HHB-600 Hand Operated Hydraulic Pump (600 bar)
ManufacturerTLP(View more products from this manufacturer)
ModelHHB-600
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Working pressure (high): 600 bar
Oil displacement per stroke (high): 1 cm³
Reservoir capacity (oil/usable): 356 / 220 cm³
Dimensions (L × B × H): 320 × 100 × 115 mm
Weight: 5.8 kg
Characteristics:
Working pressure 600 bar
Single-speed hydraulic system
One-way for single acting hydraulic applications
●Compact and lightweight design for easy carrying.
●Vent free reservoir eliminates spills.
●HHB-600 comes with 0.8 meter high pressure hose.
●Supplied with R2 3/8 quick coupler and dust cap.
