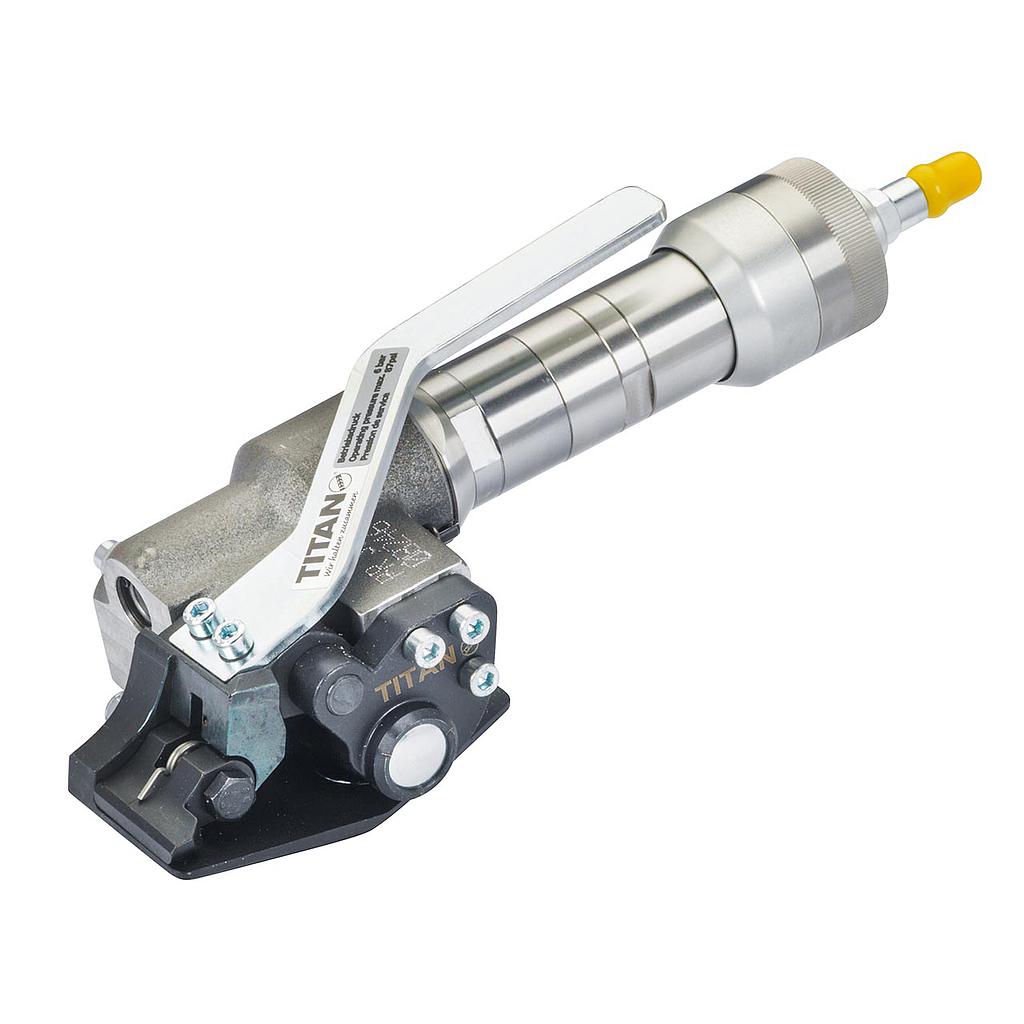

Titan PR33 Pneumatic tensioner for steel strap (8000 N)

Technical Data:

Kind of drive (tensioning): Pneumatic

Tension force: 8.000 N

Dimensions: 12.6 x 4.7 x 5.5" (L x W x H)

Weight: 9.6 lb

Air pressure: max. 6 bar flow pressure

Air consumption (during tensioning): 21.18 ft³ / min.

Strap/Joint:

Type of strap: Steel strap

Strap: Automatenband MEGABAND®

Strap width: 3/4" ; 1" ; 1 1/4"

Strap thickness: 0.031 - 0.039"

Application

Strapping of packages and palletized goods with small contact surfaces.
