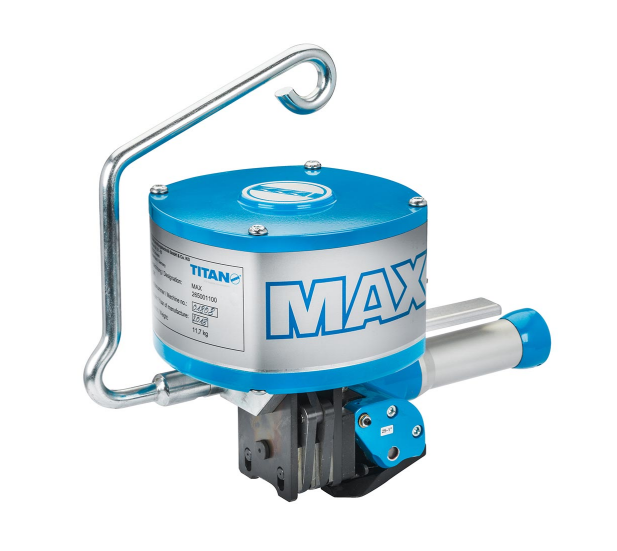

Titan MAX Pneumatic sealer for steel strap

Technical Data

Kind of drive (tensioning): Pneumatic

Tension force: max. 8000 N (adjustable)

Kind of drive (sealing): Pneumatic

Seal (Type): RSK 19 ; 25 ; 32

Strap feeding speed: 0.36 ft/s

Dimensions: 17.7 x 7.7 x 11.8" (L x W x H)

Weight: 25.8 lb

Air pressure: min. 5 bar flow pressure (for MEGABAND®); max. 6 bar flow pressure

Air consumption (during tensioning): 11 Nl / s

Air consumption (during sealing): 6 Nl / s

Cross-section: G 1/4 "

Handarm vibration: information currently not available

Noise level: 76 dB (A)

Strap/Joint

Type of strap: Steel strap

Strap: Automatenband; MEGABAND®

Strap width: 3/4" ; 1" ; 1 1/4"

Strap thickness: 0.031 - 0.039" (for Automatenband) ; 0.03" (for MEGABAND®)

Kind of seal: Seal-joint (double notch)

Sealing strength (depending on strap quality, strap dimensions): up to approx. 75% of the strap breaking load
