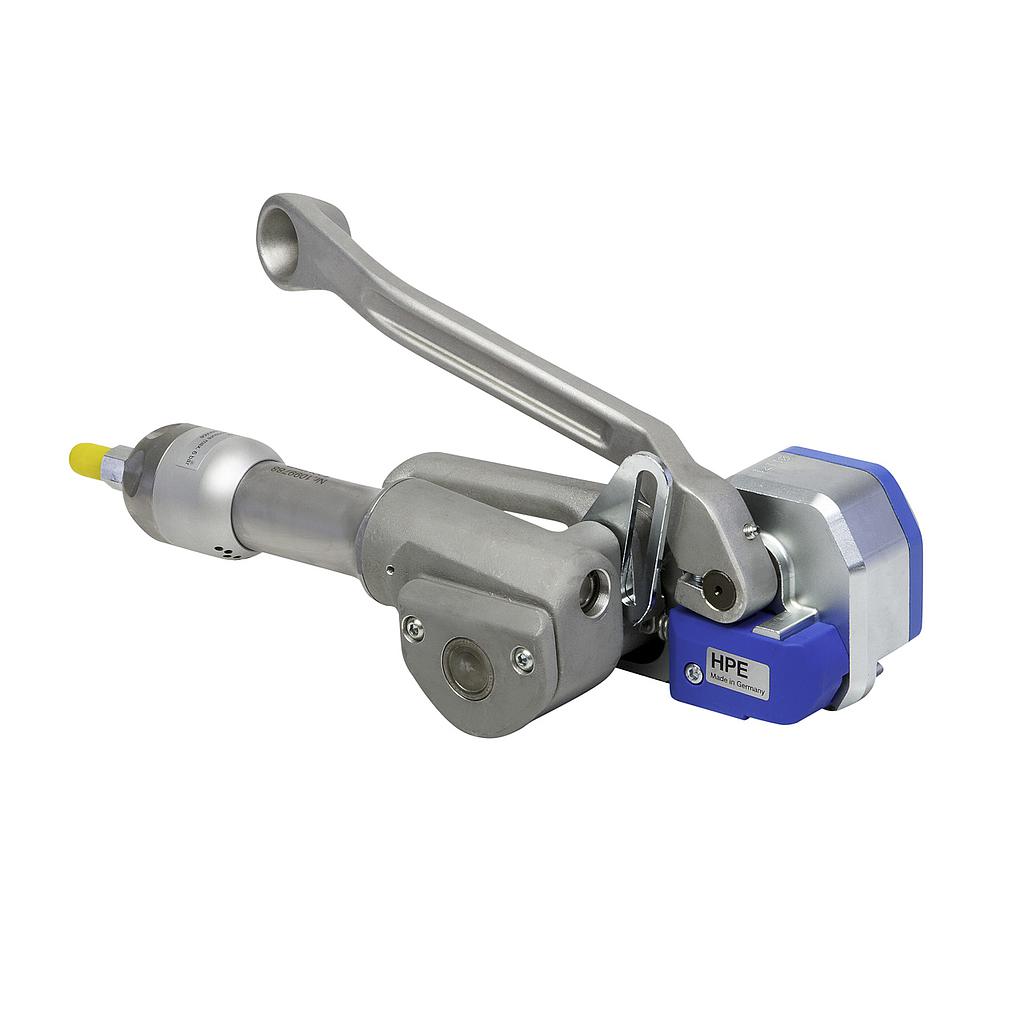

Titan HPE-L Combined strapping tool for steel strap (7000N)

Technical Data:

Kind of drive (tensioning): Pneumatic

Tension force: up to 7.000 N

Kind of drive (sealing): Manually

Strap feeding speed: 0.5 ft/s

Dimensions: 23.6 x 24.0 x 24.3" (L x W x H)

Weight: 12.1 lb

Air pressure: max. 6 bar flow pressure

Air consumption (during tensioning): 12.7 ft³ / min.

Cross-section: information currently not available

Handarm vibration: < 2.5 m/s²

Noise level: 78 dB (A)

Strap/Joint:

Type of strap: Steel strap

Strap: Automatenband; MEGABAND®; Megaflex

Strap width: 1/2" ; 5/8" ; 3/4"

Strap thickness: 0.02 - 0.031" (for Automatenband, Megaflex)

0.02 - 0.025" (for MEGABAND®)

Kind of seal: Sealless-joint

Sealing strength (depending on strap quality, strap dimensions): up to approx. 75% of the strap breaking load

Minimum bearing area:

Flat package: 5.9"

Application

Strapping of flat packages (e.g. palletized goods) for stationary use.
