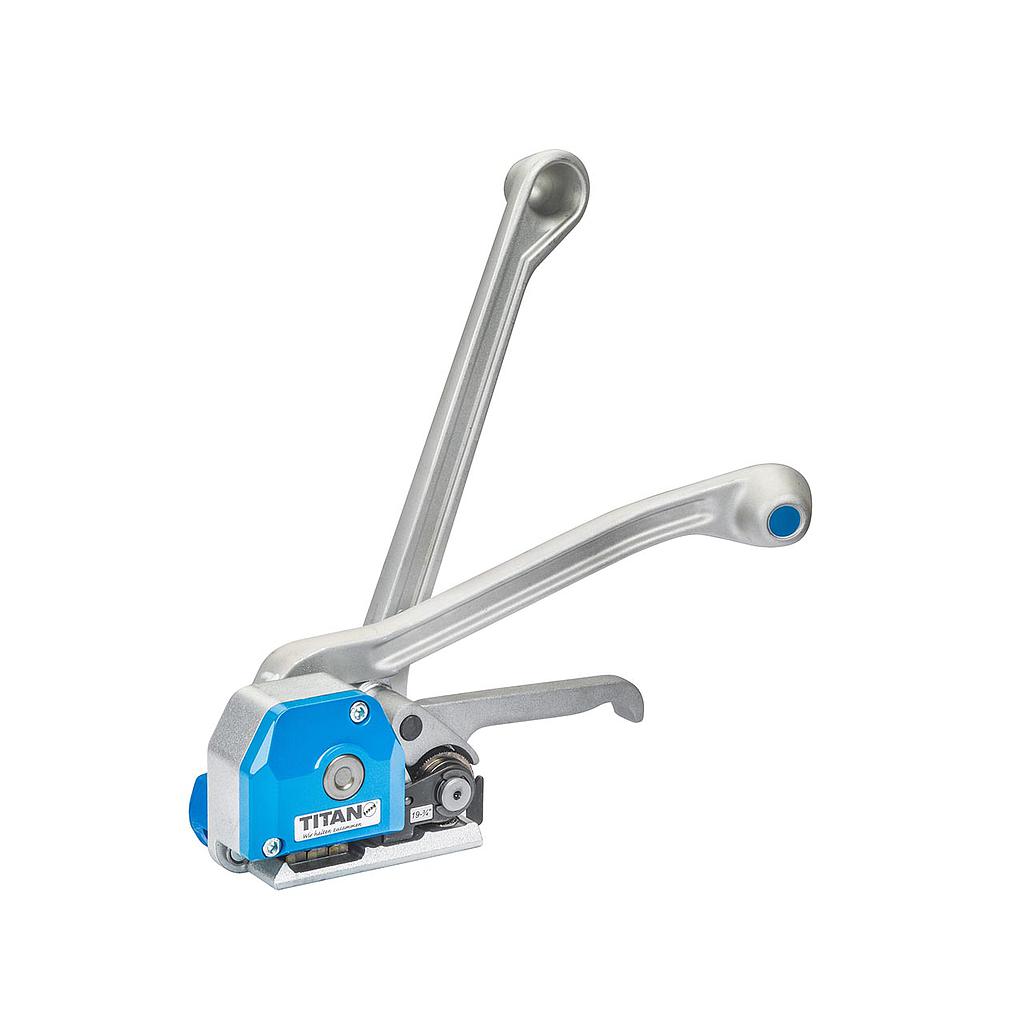

Titan HKE-L Combined strapping tool for steel strap (6000N)

Technical Data:

Kind of drive (tensioning): Manually

Tension force: up to approx. 6,000 N

Kind of drive (sealing): Manually

Dimensions: 18.7 x 4.5 x 7.5" (L x W x H)

Weight: 7.1 lb

Strap/Joint:

Type of strap: Steel strap

Strap: Automatenband up to approx. 900 N/mm² tensile strength MEGABAND® up to approx. 1.100 N/mm² tensile strength

Strap width: 1/2", 5/8", 3/4"

Strap thickness: 0.016 - 0.024 in; 0.016 - 0.025 in (for MEGABAND®)

Kind of seal: Sealless-joint

Sealing strength (depending on strap quality, strap dimensions): up to 75% of the strap breaking load

Minimum bearing area:

Flat package: 5.9"

Application

Strapping of flat packages (e.g. palletized goods) for mobile use.
