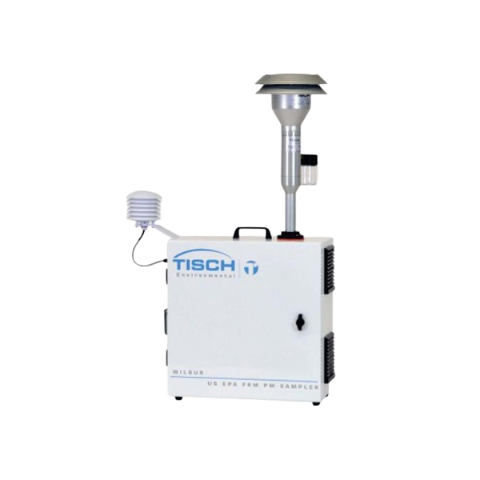

TISCH Environmental TE-WILBUR Air Particulate Sampler (TSP, PM10, PM2.5, PM1 (1-25 slpm))

Particulate Size: TSP, PM10, PM2.5, PM1 (1-25 slpm)

Sampling Interval: USEPA 1 in 3, 6, 12, 24hr; User defined; Meteorological triggers

Operating Temperature: -25°C to 50°C

Ambient Temperature Sensor: PT100 RTD, Accuracy ±0.15°C, Resolution 0.01°C

Filter Temperature Sensor: PT100 RTD, Accuracy ±0.15°C, Resolution 0.01°C

Barometric Pressure Sensor: 450-1238 mmHg, Accuracy ±10 mmHg, Resolution 0.75 mmHg

Flow Control: Brushless DC Pump, 0-25 LPM, Accuracy ±2%

Power Requirements: 120V/240V, 50/60Hz

Power Consumption: 40 watt (peak)

Optional: Solar, wind, or enhanced battery

Communication Specifications: I/O: MODBUS, USB, RJ45 Ethernet (Remote control via browser)

Physical Specifications

Weight: 48lbs / 21.8kg (without stand)

Dimensions: 20"W x 20"H x 10"D (508 x 508 x 254mm)

Regulatory Monitoring: USEPA Ambient Particulate Reference Method

Dust Control: Site Development, Bulk Transport, Employee Safety

Fence Line Monitoring
