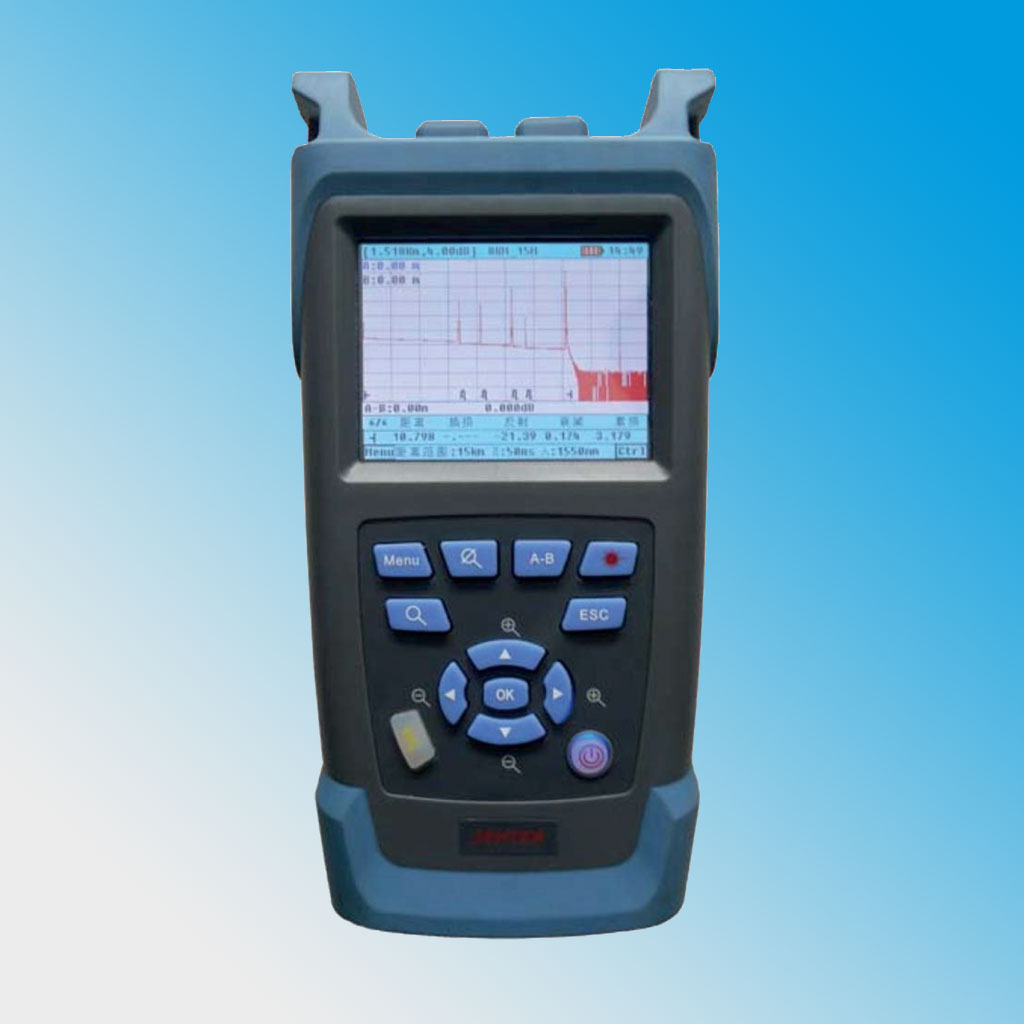

Tinsley ST3200-3532 OTDR Optical Time Domain Reflectometer (1310nm/1550nm±20nm, 32/30dB)

Optical output connector: FC-PC (standard)

Display screen: 320x240 3.5 inch colored LCD (touch screen)

Port: USB port

Environmental requirement: Working environment temperature: 0~50°C; Storing environment temperature: -20~60°C; Relative humidity: 0%～95% (non-condensing)

Dimension: DxWxH: 220mmx105mmx60mm

Weight: About 1 kg

Duration of the battery: Standby: >50h; Testing Time: >20h

Key Tech Specifications:

Wavelengths: 1310nm/1550nm±20nm

Dynamic Range: 32/30dB

Range(km): 1, 2, 4, 8, 15, 30, 60, 90, 160

Fiber Under Test: single mode

Pulse Width(ns): 10/20/50/100/200/500/1us/2us/5us/10us/20us/Auto

Working Current: 450-600mA

Power Consumption: About 4 W

Event Dead Zone: ≤2m

Attenuation Dead Zone: ≤10m

The VFL output power: >2mW

The capacity of storing waveform: >10000

Degree of Linearity(dB): ±0.05

Loss Threshold(dB): 0.01

Loss Resolution(dB): 0.01

Sampling Resolution(m): 0.16~5

Averaging Time: 5s, 15s, 30s, 1min, 2min, 3min

Power Consumption: <3W

Alarm with light: >1uw(-30dbm)

Distance Uncertainty: ± (1m+sampling interval + rangex0.005%)
