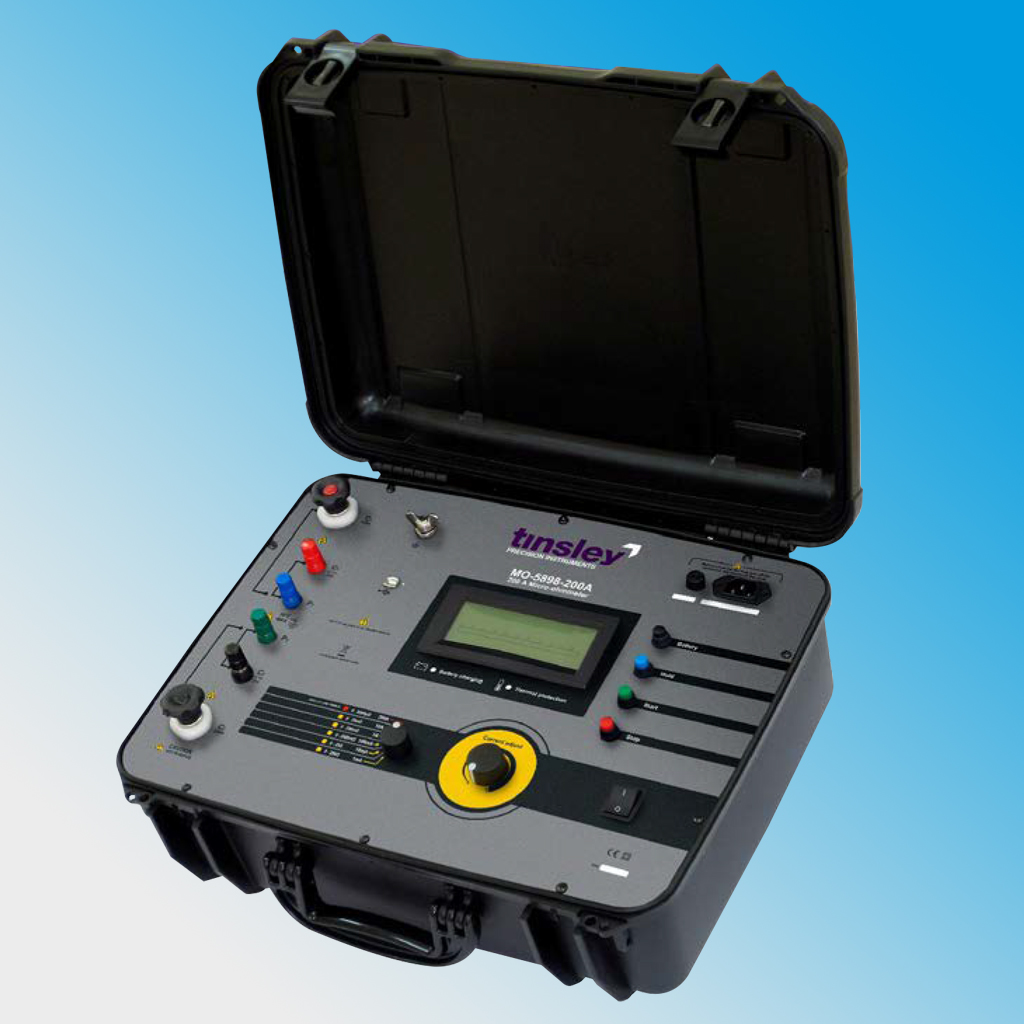

Tinsley MO-5898-200A Portable Digital Micro-ohmmeter (0-199.99 Ω)

Test Currents: 1 Ma, 10 Ma, 100 Ma, 1 A, 10 A, 200 A.Each Current May Be Continuously Adjustable From 0 To 100%.

Resistance Ranges:

Current Range Resolution

200 A: 0–199.9 µΩ 0.1 µΩ

200 A: 0–199.9 µΩ 1 µΩ

10 A: 0–1999 µΩ 1 µΩ

10 A: 0–19,999 mΩ 1 µΩ

1 A: 0–19.99 mΩ 10 µΩ

1 A: 0–199.99 mΩ 10 µΩ

100 mA: 0–199.9 mΩ 100 µΩ

100 mA: 0–1999.9 mΩ 100 µΩ

10 mA: 0–1999 mΩ 1 mΩ

10 mA: 0–19.999 Ω 1 mΩ

1 mA: 0–19.99 Ω 10 mΩ

1 mA: 0–199.99 Ω 10 mΩ

For Each Test Current, Ranges Are Automatically Selected For Optimal Reading.

Measurement Principle: Four-Terminal, Kelvin-Type.

Continuous Operation Time:

At 200 A This Equipment May Be Used Continuously For Aprox. 3 Minutes Before The Thermal Protection Activates.

At 10 A Or Less, There Is Not A Limited Time For Continuous Operation.

Basic Accuracy:

R < 0.5 Mω: ± (0.50% Of Reading + 2 Uud*).

R ≥ 0.5 Mω: ± (0.20% Of Reading + 2 Uud*).

* Units Of The Least Significant Digit.

Advanced Features: Digital Direct Reading Of Very Low Resistances In The Alphanumerical Display, With Up To 4½ Digits. Very Fast And Accurate Measurements.

Termal Protection: Protects All Sensitive Components, Avoiding Any Damage Due To Overheating.

Environmental: Ip54 With Closed Lid.

Safety Class: Meets The Requirements Of Iec 61010-1.

Interface Usb. Power Supply:

Mains Or Internal Battery Powered.

Internal Battery: Rechargeable, Sealed Lead-Acid, 12 V - 7 Ah (For Up To 10 A Test Current).

Mains Supply: 220-240 V~ (For Up To 200 A Test Current).

Built-In Battery Charger: For 220-240 V~ Mains Supply.

Operating Temperature Range: -5 °C To +50 °C.

Storage Temperature Range: -25 °C To +70 °C.

Umidity Range: 95% Ur (Non Condensing).

Equipment Weight: Approx. 16 Kg.

Dimension: 502 X 394 X 190 Mm.

Available Accessories: 2 Combined Current And Potential Leads For 10 A. 2 Combined Current And Potential Leads For 200 A. 1 Power Cord. 1 Usb Cable. 1 User Guide. 1 Case For The Accessories.
