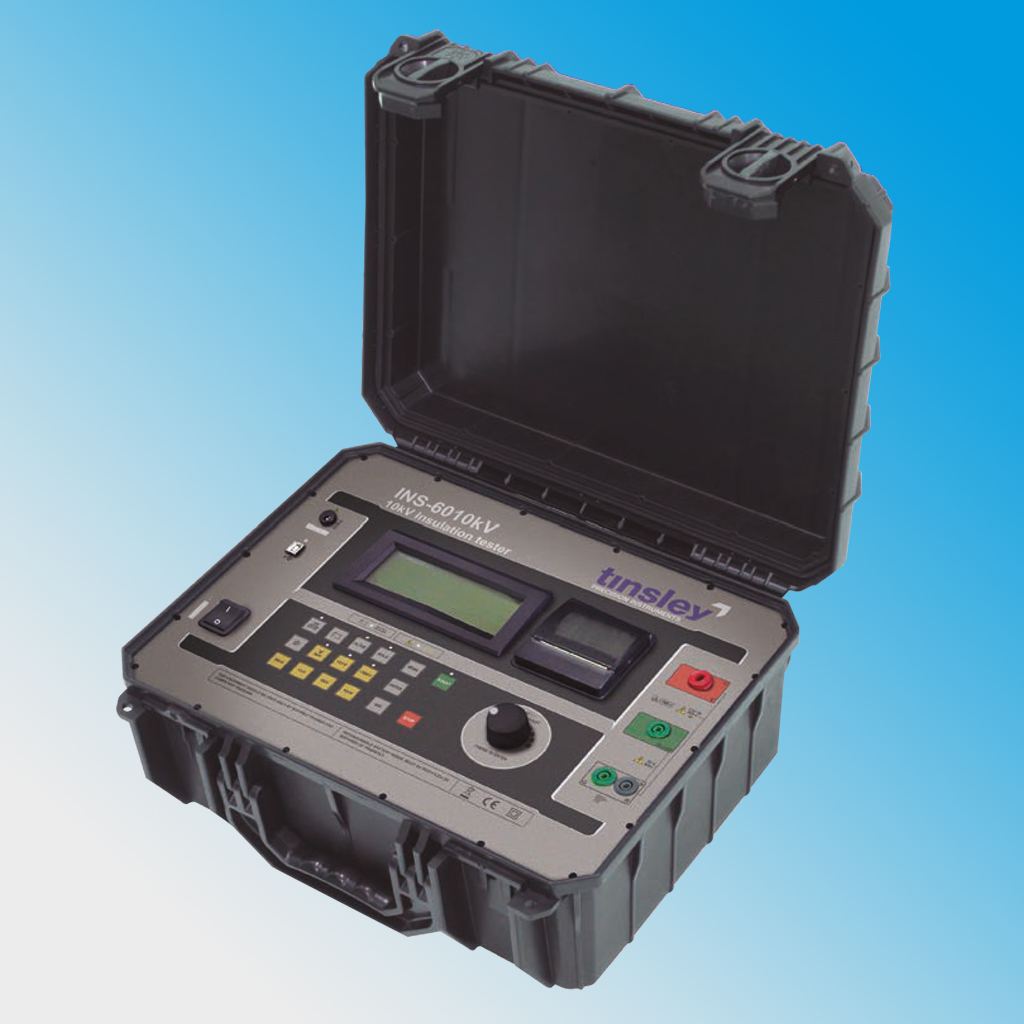

Tinsley INS-6010kV Digital Insulation Tester

Test Voltages" 500V - 1Kv - 5Kv - 10Kv Directly, One Button Selectable. 500V To 10Kv In 25V, 100V Or 500V Steps. Dc, Negative.

Maximum Resistance Reading: 10Tω @ 10Kv.

Dc Voltmeter :15V Up To 600Vdc. Accuracy: ±(5% Of Reading + 3 Digits).

Ac Voltmeter:  15V Up To 600V R.M.S.Accuracy: ±(5% Of Reading + 3 Digits).

Overvoltage Category: Cat. Iii - 600V.

Leakage Current Measurement: 1Na Up To 1500Μa ±(10% Of Reading+ 3 Digits).

Capacitance Measurement:

50Nf Up To 10Μf @ 500V.

 50Nf Up To 5Μf @ 1,000V.

30Nf Up To 2Μf @ 2,500V.

30Nf Up To 1Μf @ 5,000V.

30Nf Up To 680Nf @ 10,000V.

Accuracy: ±10% Of Reading ± 3 Digits.

Short Circuit Current: Max. 2Ma.

Test Voltages Accuracy: ± 3% Of Nominal Test Voltages On 10Gω.

Megohmmeter Basic Accuracy:

± 5% Of Reading From 1Mω To 1Tω  @ 10Kv.

± 20% Of Reading From 1Tω To 10Tω @ 10Kv. (For Lower Test Voltages, The Upper Limit Will Be Reduced Proportionally).

± 20% Of Reading ± 5 Digits From 10Kω To 100Kω.

± 10% Of Reading ± 5 Digits From 100Kω To 1Mω.

Advanced Features

Automated Polarization Index Calculation

Automated Dielectric Absorption Ratio Calculation

Programmable Pass-Fail Test

Step Voltage Test

4000 Readings Memory

Switchable Filter To Remove External Noise Interference

Built-In Printer : Prints Elapsed Time, Actual Voltage And Resistance Measured Each 15 Seconds

Data Output: Usb

Built-In Chronometer: Shows Elapsed Time In Mm:Ss Format.  Count Starts Automatically For Each Measurement.

Megalogg2 Software: Friendly, Easy To Use Software. Tests  Are Represented In Graphic And Tabular Views. With Automatic Report Generator, Including The Operator'S Commentaries.

Environmental Protection: Ip54 (With Closed Lid)

Safety Class: In Accordance With Iec 61010-1.

E.M.C. :In Accordance With Iec 61326-1

Electro Magnetic Irradiation Immunity: In Accordance With Iec 61000-4-3.

Electrostatic Immunity :In Accordance With Iec 61000-4-2.

Power Supply : Internal Rechargeable Battery 12,8V - 6Ah.

Battery Charger : Ac Adapter 18V - 2A.(Input 90 - 260V~ 45-65Hz).

Operatingtemperature Range: -5°C To 50°C.

Storage Temperature Range: -25°C To 65°C.

Humidity Range: 95% Rh (Non Condensing).

Equipment Weight: Approx. 6.3Kg.

Dimensions :406 X 330 X 174Mm.

Included Accessories:

2 Measuring Test Leads

 1 Guard Test Lead

1 Ac Adapter

1 Usb Cable

1 Protective Bag

1 User Guide

1 Megalogg2 Software
