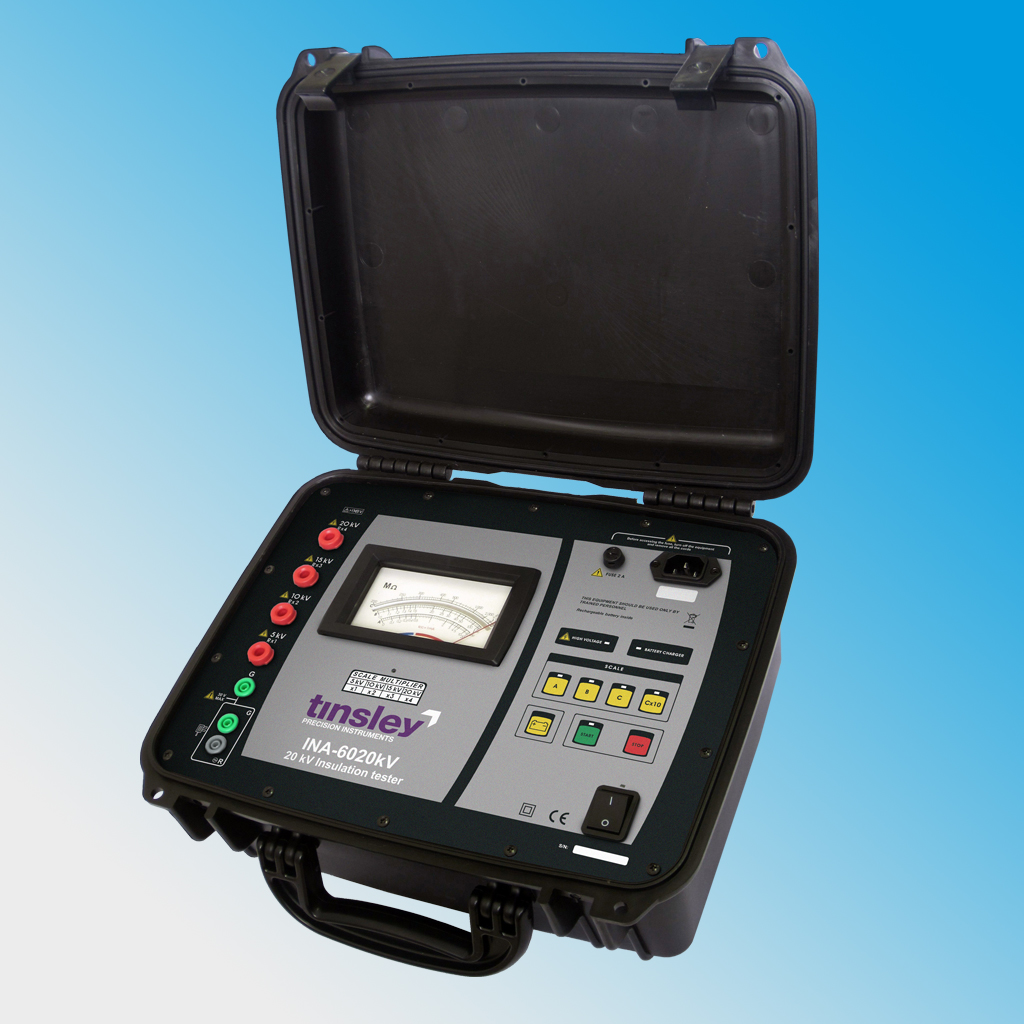

Tinsley INA-6020kV 20kV High Voltage Insulation Tester (20kV)

Test voltages 5 kV - 10 kV - 15 kV - 20 kV.

Maximum resistance reading

1 TΩ @ 5 kV.

2 TΩ @ 10 kV.

3 TΩ @ 15 kV.

4 TΩ @ 20 kV.

Short circuit current 500 µA.

Test voltages accuracy ± 2 % of nominal test voltages on R ≥ 10 GΩ.

Internal current limiting resistance

10 MΩ @ 5 kV.

20 MΩ @ 10 kV.

30 MΩ @ 15 kV.

40 MΩ @ 20 kV.

Insulation tester accuracy Class 2 (± 2 % of full scale deflection).

Analog indicator Up to 98 mm scale length, taut band, with mirror.

Environmental protection IP65 (with closed lid).

Safety class In accordance with IEC 61010-1.

Electromagnetic compatibility (E.M.C.) In accordance with IEC 61326-1.

Electromagnetic immunity In accordance with IEC 61000-4-3.

Electrostatic immunity In accordance with IEC 61000-4-2.

Power supply Internal rechargeable 12 V - 7 Ah, sealed lead acid battery.

Battery charger 230V -6% +1-% 50Hz.

Operating temperature range 23 °F to 122 °F (-5 °C to 50 °C).

Storage temperature range -13 °F to 158 °F (-25 °C to 70 °C).

Humidity range 95 % RH (non condensing).

Equipment weight Approx. 21.60 lb (9.8 kg).

Dimensions14.88" x 12.13" x 6.89" (378 x 308 x 175 mm).
