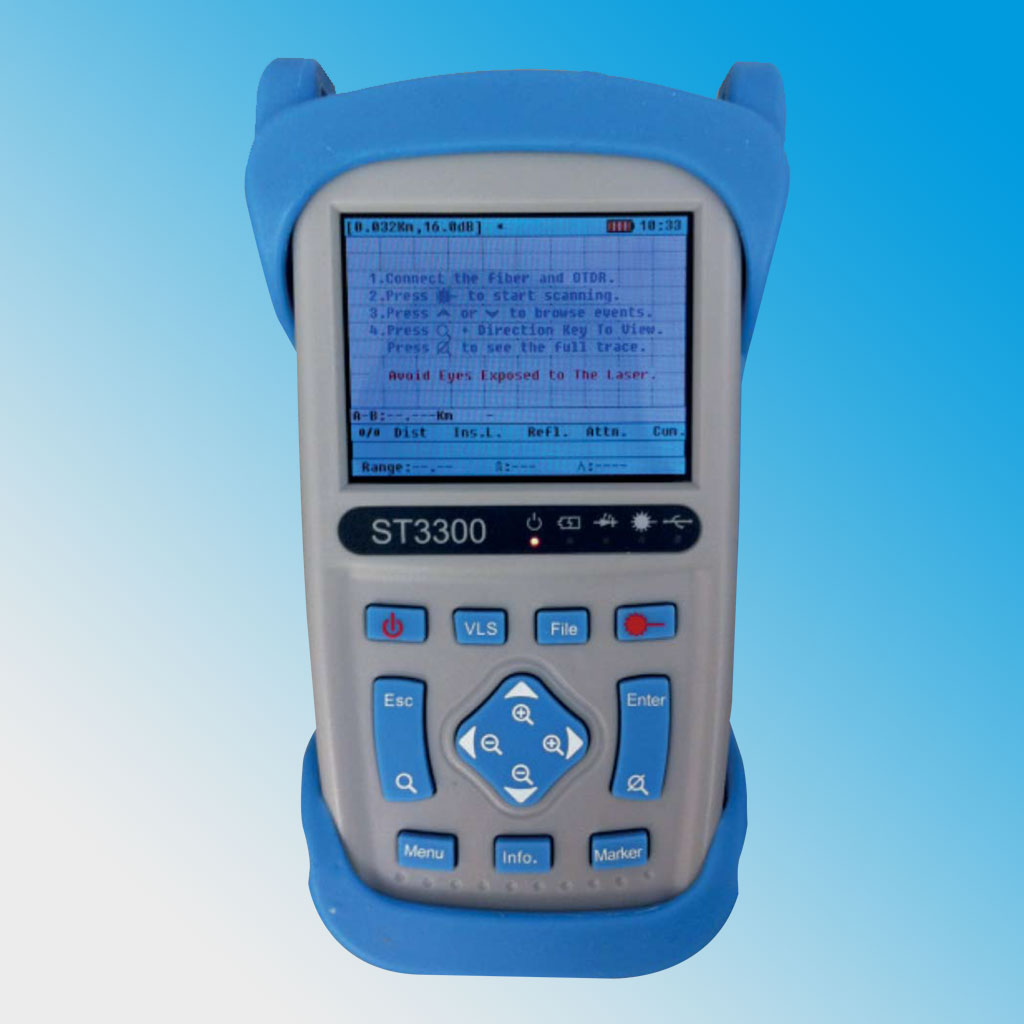

Tinsley CuteOTDR-3300C OTDR Optical Time Domain Reflectometer (1310/1550, 32/30dB)

Wavelength: 1310/1550

Sensing Fiber: Single mode fibers

Dynamic Range (dB): 32/30

Pulse Duration(ns): 10/20/50/100/200/500 /1us/2us/5us/10us/20us

Even Dead Zone(m): ＜1.8m

Attenuation Dead Zone: <10m

Attenuation Detect Accuracy(dB/dB): ±0.05

Loss Resolution(dB): 0.01

Sampling Resolution(m): 0.16-5 (0.16 0.32 0.64 1.28 2.56 5.08）

Distance Measure Accuracy(m): ±(1m+5x0.005%xdistance+sampling space)

Max Measuring Distance (km): 1-160Km

Data Storage: ＞10000 records

Storage Format: .sor bellcore file

Averaging Time: 5s,15s,30s,1min,2min,3min

Dimensions(HxWxT): 210*112*67mm

Weight: 1kg

Temperature: Operating Temperature 0°C -50°C Storage Temperature -20°C -60°C

Relative Humidity: 0%-95%(non-condensing)

Battery life: ＞10 hours

Interface Type :

Connector: FC(ST/SC Interchangeable)/PC

Connectivity: USB/SD card

Matching Function Modules:

CVisible Fault Locator: Wavelength: 650nm; Farthest distance test:5Km

Stable light Source Module: Wavelength(±20):The work of OTDR with wavelength

Notes:

1)The dynamic range is SNR =1 the maximum pulse width within averaging time of 3 minutes

2)Conditions for dead zone measurement: reflection strength beleow-45dB, Event Dead Zone with 10ns pulses width measurement, Attention Dead Zone 50ns pulse width measurement.

3)Do not include due to refraction caused by the uncertainty.

4)Stable source and CuteOTDR sharing the same light port and Cute OTDR work wavelength consistent.
