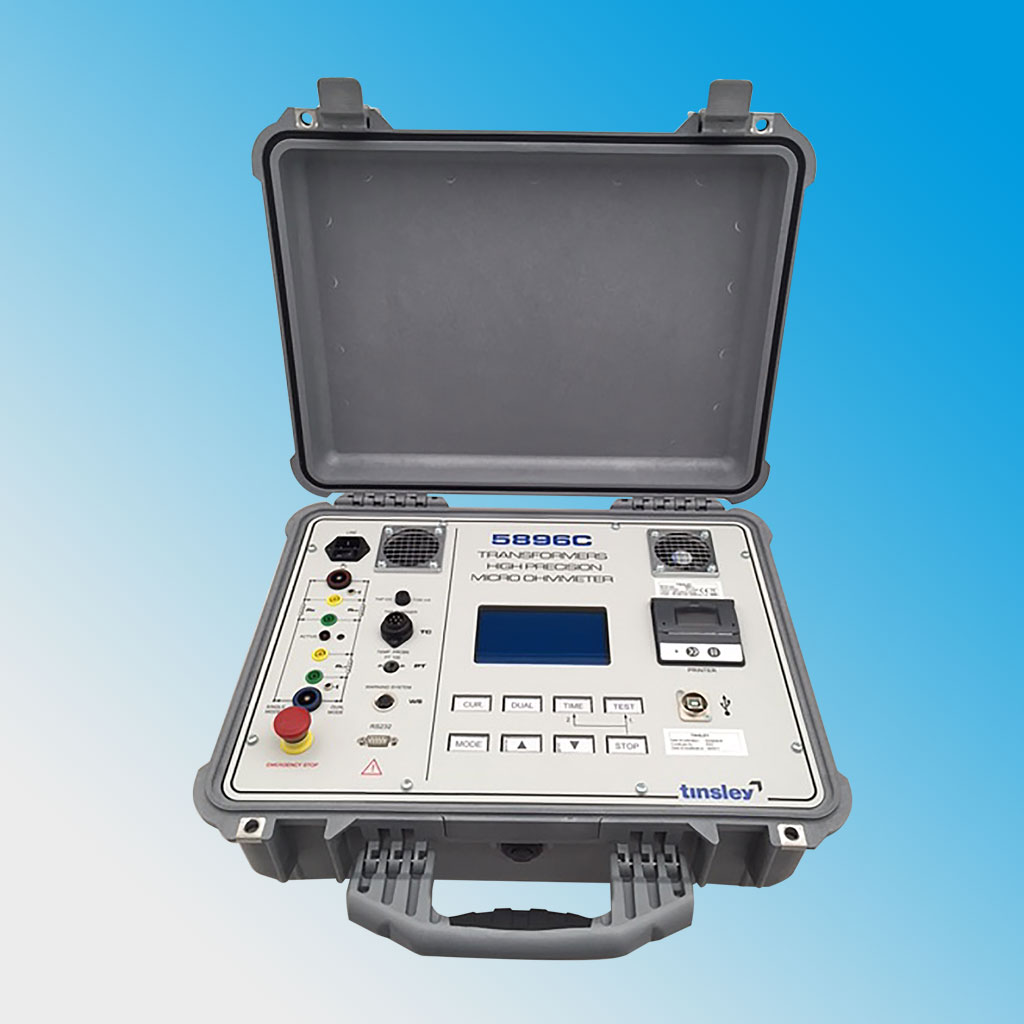

Tinsley 5896C Dual Channel Transformer Micro-Ohmmeter (20mΩ (10–60A) ~ 6kΩ (10mA))

Resistance Range: 20mΩ (10–60A) to 6kΩ (10mA)

Resolution: 0.01mΩ e.g. 150.01mΩ (4-1/2 digit)

Accuracy: ±0.1% of reading

Max. Voltage: 60V pure DC (Noise < 10mVpp)

Max. Current: 60A pure DC

Selectable max. current: 10mA to 60A, limited by total resistance (cable + object)

Measuring time: Short due to very fast charge with 60V available

Discharge time: Typically 1/10 of charging time

Measuring inputs: Measuring inputs 2 Current, 4 Potential (2 channels)

Temperature input: Connector for PT100 (correction for 20/23°C for Cu or Al)

Tap changer: Connector for automatic up/down control

Warning system: Connector for red/green warning lamps

External start: Connector for measurement start via external contact

External current supply: Connector for controlling currents up to 600 A, automatically extends range down to 2mW (resolution 0.001mW = 1nW)

Mains: 85 to 260 VAC, 6.5A, Auto ranging

Display: LCD 240 × 128 with back light

Interface: RS232C

Printer: Built-in thermal printer

Test storage: Up to 1000 results

Environment (operating): −10°C to 50°C

Environment (storage): −30°C to 60°C

Environment (humidity): 0 – 90% R/H max., non condensing

Size (without cables): 490 × 400 × 190 mm (WxDxH, mobile ABS rugged case)

Weight (without cables): Approx. 15kg

Cables: Various options available

Safety and EMC: CE, IEC-1010-1, EN55022 B, EN61000-3-2, ENV50204
