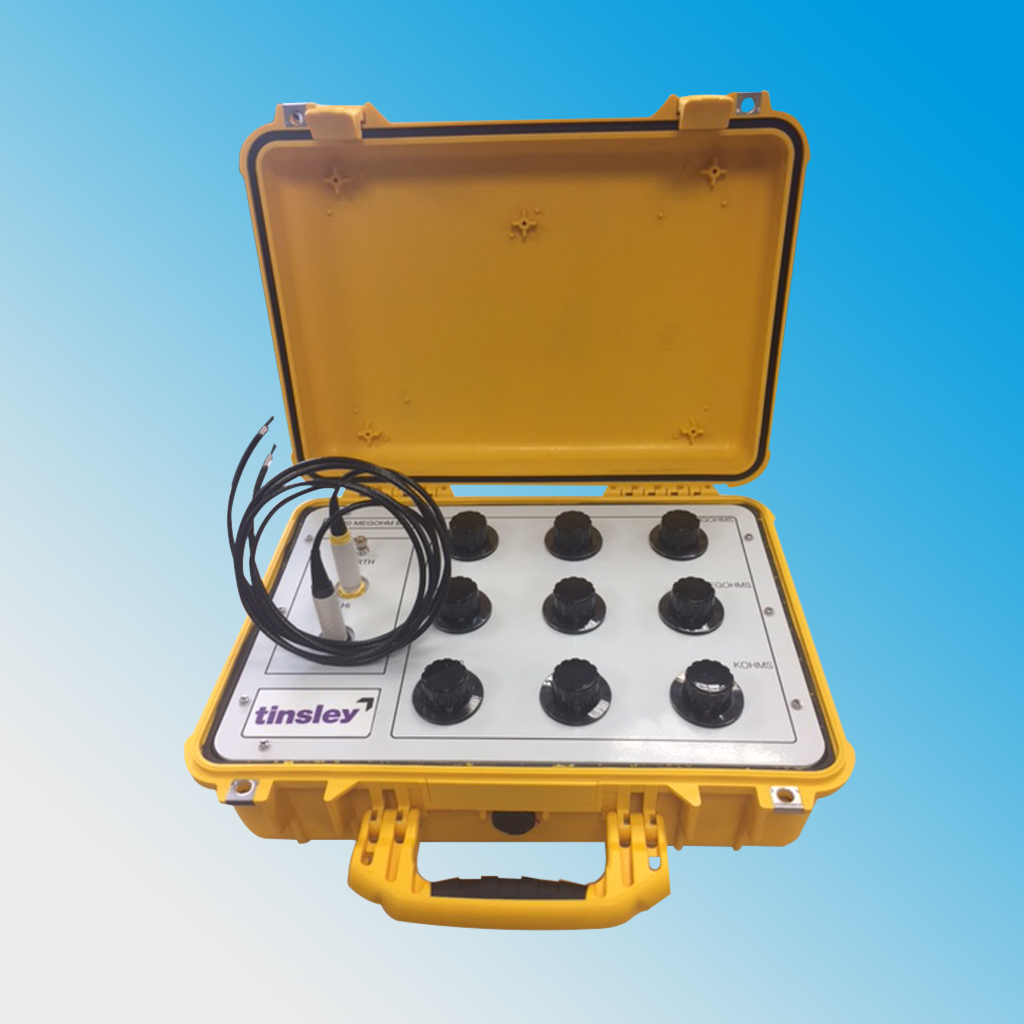

Tinsley 4720/2 Decade High Resistance Box (6 Decades, 1 KΩ ~ 1111 MΩ)

 Value | accuracy | Max power (W) | Max. V/Step | Temp.Coeff

Decade 1: 10 × 1 kΩ | ±0.15% | 2 W | 10 V/step | ±15 ppm/°C

Decade 2: 10 × 10 kΩ | ±0.15% | 2 W | 50 V/step | ±15 ppm/°C

Decade 3: 10 × 100 kΩ | ±0.15% | 2 W | 150 V/step | ±15 ppm/°C

Decade 4: 10 × 1 MΩ | ±0.15% | 2 W | 300 V/step | ±25 ppm/°C

Decade 5: 10 × 10 MΩ | ±0.2% | 2 W | 500 V/step | ±50 ppm/°C

Decade 6: 10 × 100 MΩ | ±1.0% | 7.5 W | 1000 V/step | ±100 ppm/°C

Weight: 8.8kg

Dimensions: 47cm x 37cm x 18cm
