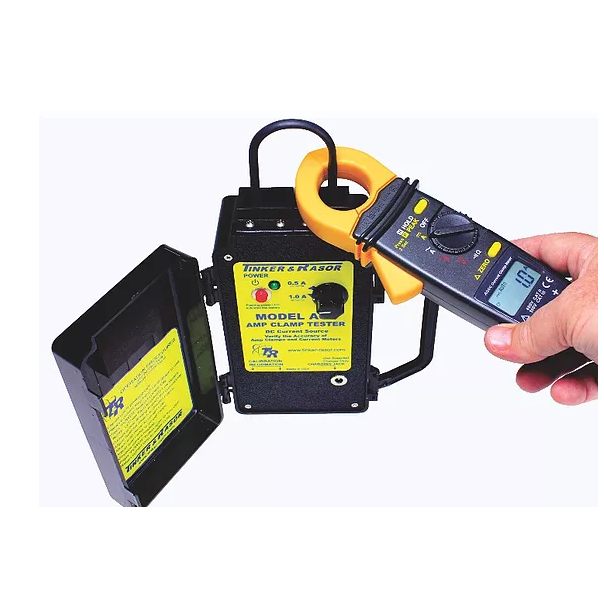

Tinker & Rasor ACT Amp Clamp Tester (1A DC)

FEATURES:

• Very Accurate DC current output

• 1.0 Amp and 0.5 Amp outputs

• Use with any DC amp clamp

• Use with most DC current meters

• Current Loop stores inside case

• Battery operated (rechargeable)

• Low battery indicator

°F

ENVIRONMENT:

-10°C~50°C (14°F~122°F)

*Temperature extremes will affect accuracy

SPECIFICATIONS:

1.000 Amp DC current output (+/-5%*)

0.500 Amp DC current output (+/-2.5%*)

* at room temperature (72°F)

DIMENSIONS:

Operating Size: 8.00” x 4.00” x 3.00” case

(203.2mm x 101.6mm x 76.2)

Operating Weight: 2 lbs (.9 kg)
