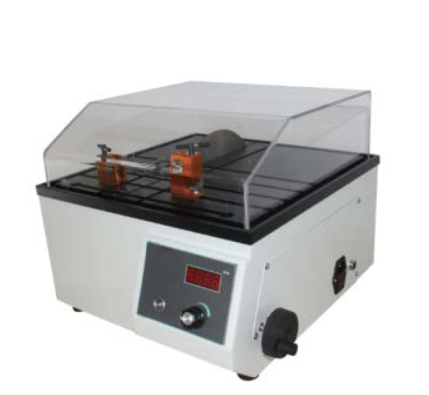

TIME UniCUT 230B Manual Cutter (500-3000rpm)

Cutting Mode: Manual/ Table-feed

Cutting Cutting Blade: Φ230x12.7x1.0

Speed: 500-3000rpm

Max Cutting Thickness: 50mm

y axis travel: 100mm

Electrical Specification: 550W

Cooling Mode: built-in cooling water tank

Table Dimensions(mm): 400x450

Installation Conditions

Power: Single Phase220V/110V

Packing Parameter

Equipment: 460x500x350

Standard Delivery

Tool Accessories box

Diamond Cutting Blade

Blade Guard

Vertical Clamp

Screed Cutting

Power Line

Water Output

Cutting Fluit

Open Spanner 15mm

Open Spanner 24mm

Inner Hexagon Spanner 5mm

Optional Accessory

Screed Cutting

Silicon Cutting Sheet

Corundum Cutting Sheet

X axis feed holder 0-30mm

Geologic Sheet Vacuum Fixture

Angle Holder

Vacuum Cleaner
